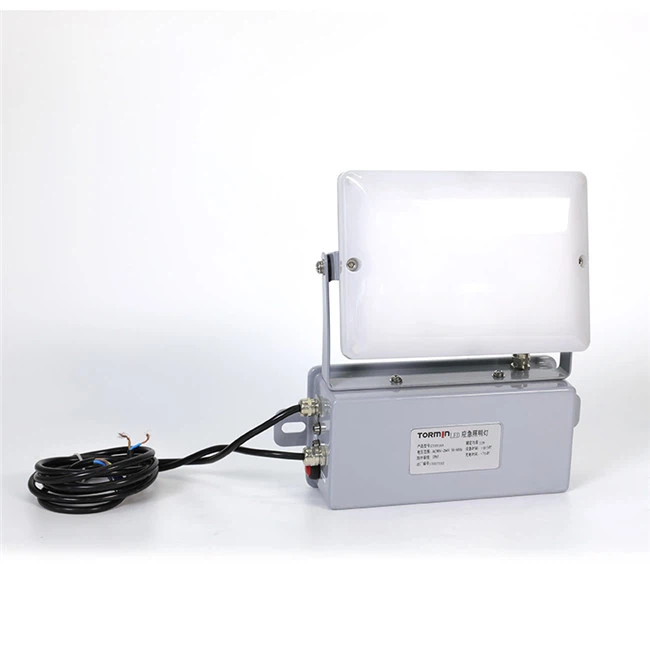

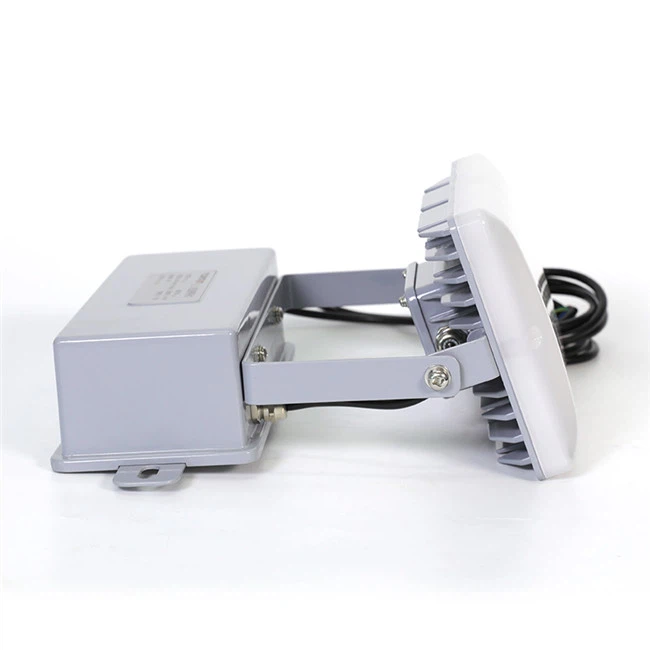

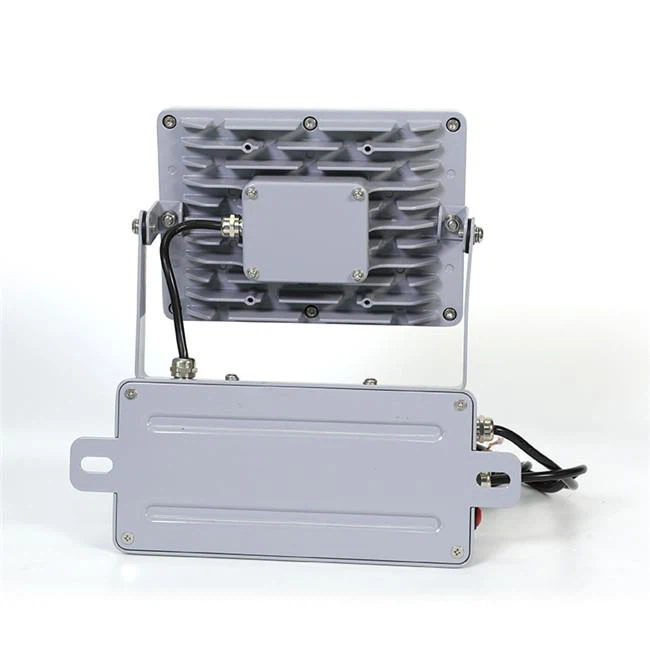

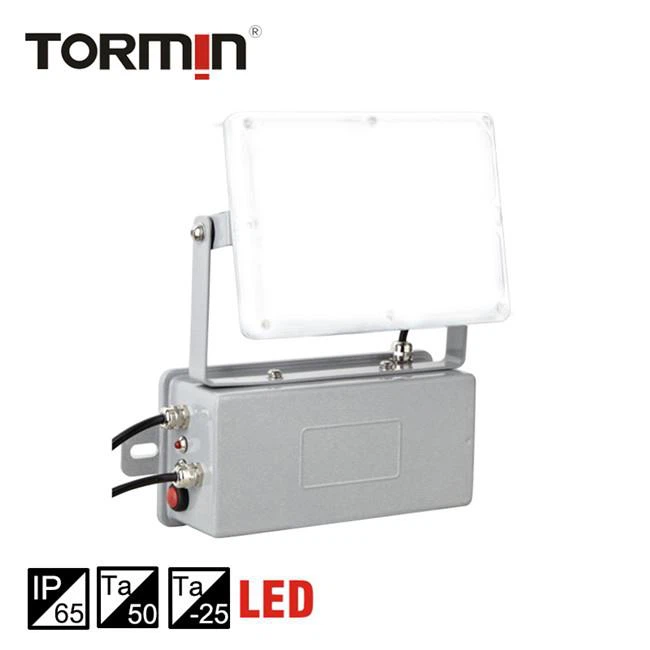

Rechargeable LED Emergency Light ZY8810A, ZY8810B

​Model: ZY8810A, ZY8810B
IP Code: IP66
Ambient temp.: – 25℃ to +50℃

Product Details


Application

This product is ideal to use as emergency evacuation or emergency lighting in small space such as on-site control room, operation room, mezzanine, foyer, trench, stairwell, etc.



Characteristics

Automatic emergency: After power off, the luminaire automatically switches to battery power to provide continuous illumination after power failure.

Manual emergency: After the power is cut off, the luminaire will not automatically switch to the battery power supply. It needs to be controlled by the button switch or external switch on the luminaire, and it will be automatically charged after the call.

Normal lighting + emergency lighting: can be used as ordinary lighting in normal times, providing emergency lighting in case of accidents.

Emergency lighting: Provide emergency lighting in the event of an accident. With power failure simulation test function, it can quickly test whether the function of the lamp is normal after installation.

Pure emergency function: press the red switch on the luminaire when power is on, switch to pure emergency mode after extinguishing the light source (only emergency lighting is provided)

The high-efficiency radiator effectively solves the problem of LED emergency light decay caused by temperature rise.

The shell of led emergency lamp is made of lightweight alloy material, which is wear-resistant, corrosion-resistant, waterproof and dustproof.

The transparent piece is made of tempered glass material, which has high light transmittance and good impact resistance, which can make the lamp work normally under various harsh environments.

The emergency power supply uses a lithium battery, which is safe and efficient and has a long service life.



Technical Specification

Item ZY8810A ZY8810B
Input voltage range 90~264AC
Input frequency 50Hz/ 60Hz
Light source LED
Service life 100000h
Time of charging 10h >6h
Rated Capacity 5.2Ah/ 14.8V 2.6Ah/ 14.8V
Battery Recharge Cycle ≈1000
Dimension 180* 130* 65mm
Net weight 2 kg



Ordering reference

Ordering
reference

Wattage

Emergency wattage

Light output

Emergency duration

Mounting
height

Equivalent to

Fluorescent Lamp

Normal illuminate+ auto Emergency

ZY8810A-A

12W

6W

600lm

>10h

2~5m

28W

ZY8810B-A

6W

4W

300lm

>10h

18W

Auto Emergency

ZY8820A-A

12W

6W

600lm

>10h

2~5m

28W

ZY8820B-A

6W

4W

300lm

>10h

18W

Normal illuminate+ Manual Emergency

ZY8810A-M

12W

6W

600lm

>10h

2~5m

28W

ZY8810B-M

6W

4W

300lm

>10h

18W

Manual Emergency

ZY8820A-M

12W

6W

600lm

>10h

2~5m

28W

ZY8820B-M

6W

4W

300lm

>10h

18W
