Model: BC5401-L2x20
IP Code: IP66
Ex Code: Ex d e op is IIC T5 Gb
Ex op is tb IIIC T95℃ Db
Ambient temp.: -40℃ to +55℃
Standard: GB3836.1, GB3836.2
IEC60079-1:2014, MOD
ATEX: INERIS 15ATEX0052X
IECEX: IECEx EUT 16.0014X

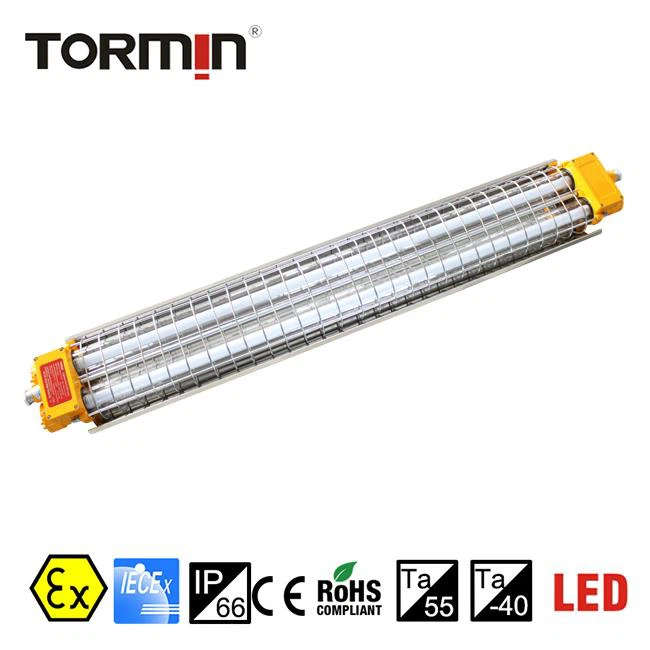

LED tube light with ATEX IECEX certified BC5401 series is ideal one-to-one replacements for explosion proof fluorescent light and other SMD linear. Better performance and easy-maintenance.
Product Details
Why LED Tube Light?
LED tube lights are ideal one-to-one replacements for fluorescent T5, T8 linear and T8 U-bend lamps. LED tube lights are more energy efficient and cost effective because of their longer life span, better light output and lower power consumption. T8 LED tubes and T5 LED tubes do not flicker or burn out easily and provide bright and even lighting to office spaces, retail stores and storage rooms. Get up to 50,000 hours of warm white, neutral white or cool white light output with combined high CRI.
Application
- Explosion proof LED tube can be widely used in petrochemical plants, oil platforms, oil pump housing, transit stations and other flammable and explosive places as fixed lighting.
- Gas explosive environment: Group IIA, IIB, IIC.
- Zone1, Zone2; Zone21, Zone22
Technical Specification
| Item | Technical specification |
| Rated power | 2*20W(T8 LED tube) |
| Input voltage range | 100~240VAC |
| Input frequency | 50Hz/ 60Hz |
| Light source | LED |
| Light efficiency flux | 3900lm |
| CRI | >Ra 70 |
| Service life | 50000h |
| CCT | 3000K/4000K/5000K |
| Screw Thread | G3/4″, NPT3/4″, M25*1.5 |
| Terminals | Multi-core wire：≤2.5mm2 |
| Single-core wire：≤4mm2 | |
| Dimension | 1390* 180* 110mm |
| Net weight | 11 Kg |
