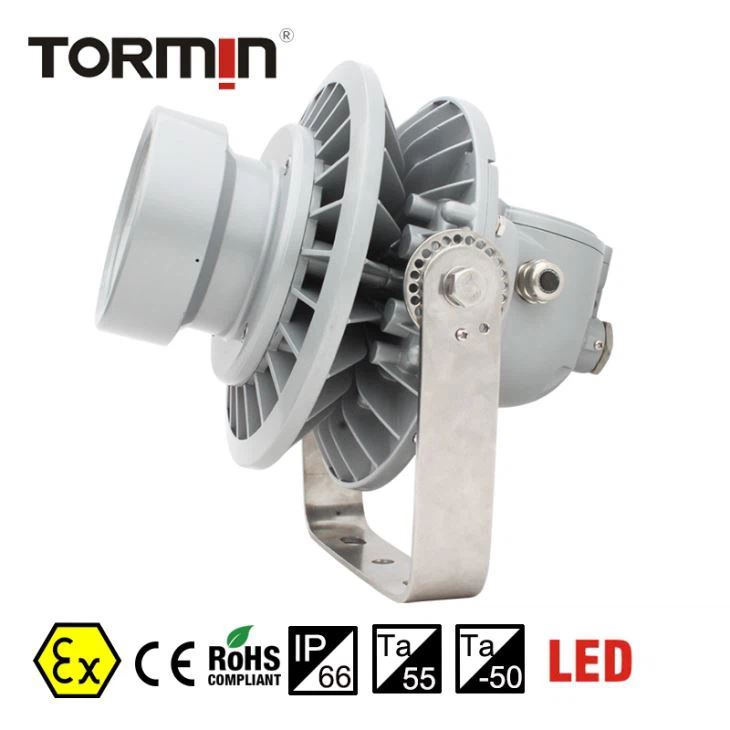

Model: BC9306S spotlight Series
IP Code: IP66
Ex Code: Ex db e IIC T4/T5/T6 Gb
Ex tb IIIC T130℃/ T95℃/T80℃ Db
Ambient temp.: – 50℃ to +40℃/55℃
Standard: GB3836.1, GB3836.2
IEC60079-1:2014, MOD
ATEX: EPT16 ATEX 2484 X
IECEX: IECEx EUT 17.0011X
Our lighting solutions are designed to maximize energy savings while significantly reducing installation and maintenance costs, ensuring the highest level of safety and productivity in your facility. 3~5 years fixed light warranty, more than 10 years of service life.
Product Details
Application
- Ideal to be used in the oilfield, chemical industry, offshore drilling platform, steel industry, petroleum, etc.
- Gas explosive environment: Group IIA, IIB, IIC.
- Zone 1, zone 2; zone 21, zone 22.
Characteristics
- The BC9306S ATEX Spotlight is compact and powerful, designed for general-purpose applications in potentially explosive environments in the ATEX Zone 1 / Zone 2 / Zone 22 / Zone 22.
- Flameproof light can be used in machines, vehicles and ships in the (petroleum) chemical industry, which is subject to ATEX regulations.
- The outer casing is made of special aluminum. Its IP rating of 66 makes the explosion proof LED ideal for outdoor use in harsh environments.
- The power supply can also be 18~43VAC/18~55VDC.
- The lamp is shock resistant, shock resistant and vibration resistant.

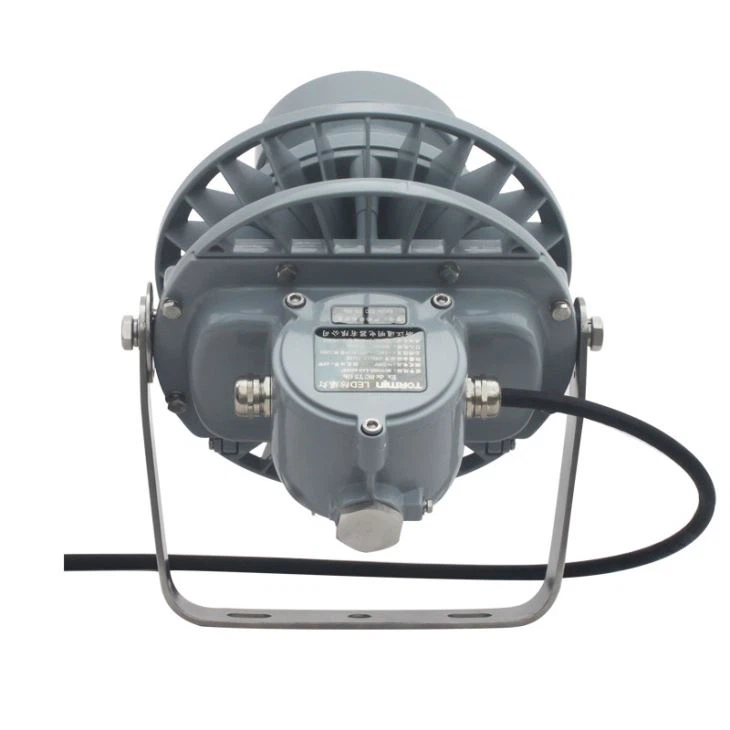

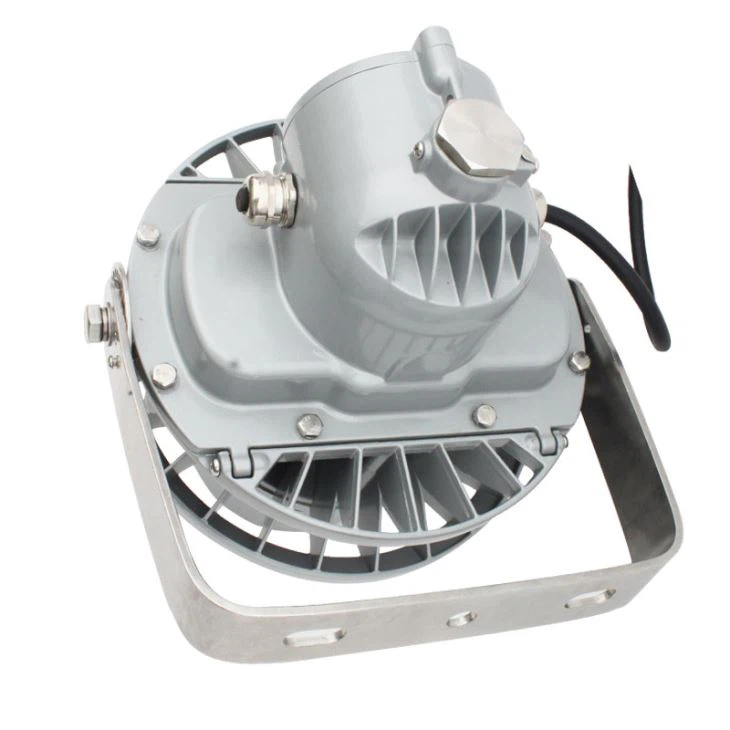

- Independent wiring room, easy to install, easy to install and maintain.
- Quickly change the light source without soldering.
- No dark spots, no ghosting, energy saving 60% higher than metal halide lamps.
Main Specification
| Item | Technical Parameters |
| Input voltage range | 90~264VAC |
| Input frequency | 50Hz/ 60Hz |
| Light source | LED |
| Service life | 50, 000h |
| CRI | Ra 70(80 Optional) |
| CCT | 5000K (3000K/4000K Optional) |
| Cable entry | G3/4″, NPT3/4″, M25* 1.5 |
| Terminals | Multi-core wire：≤2.5mm2 |
| Single-core wire：≤4mm2 | |
| Dimension | 291* 260* 270mm |
| Net weight (kg) | 5.4 Kg |
Ordering Reference
|
Ordering |
Wattage |
Light output |
Equivalent to |
|
High Pressure Mercury Lamp |
|||
|
BC9306S-L60-18° |
60W |
5900lm |
150W |
|
BC9306S-L80-18° |
80W |
7500lm |
175W |
