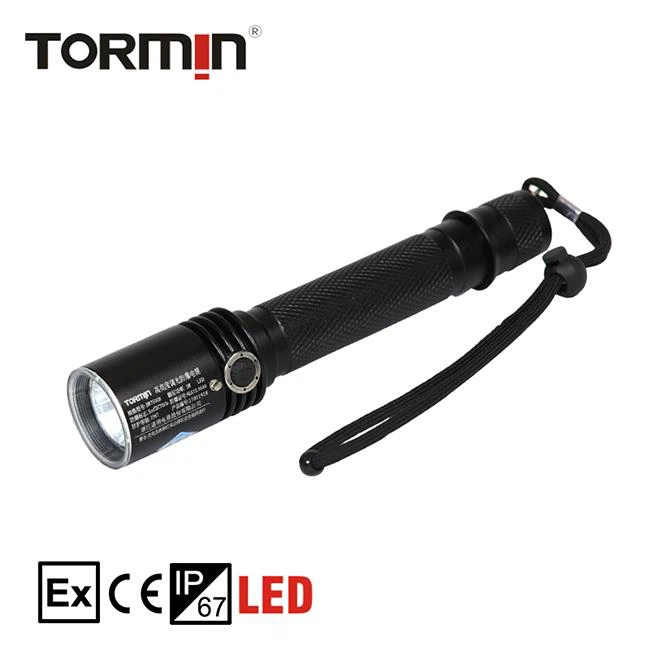

LED Explosion Proof Flashlight BW7500A, BW7500B, BW7500C

LED Explosion Proof Flashlight BW7500A, BW7500B, BW7500C

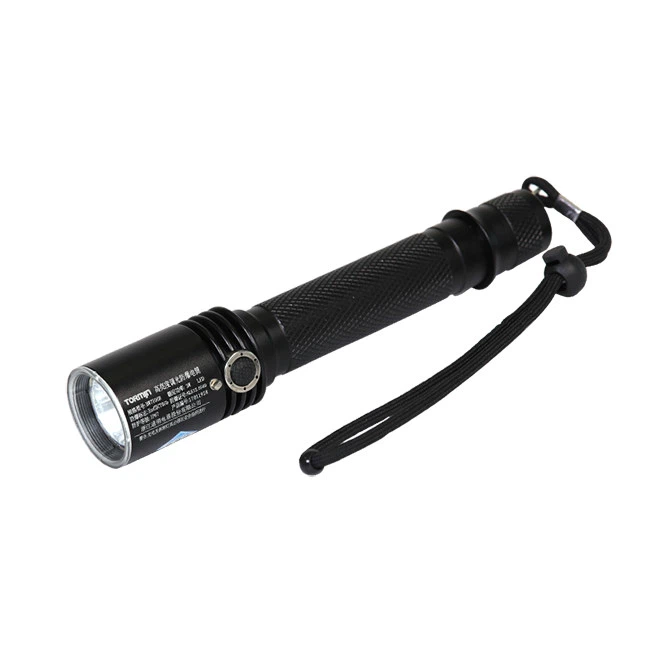

LED Explosion Proof Flashlight BW7500A, BW7500B, BW7500C - Image 2

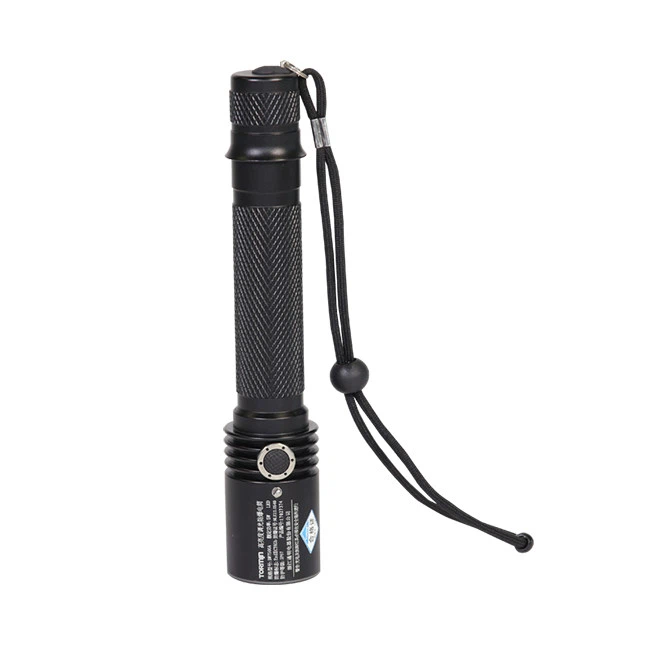

LED Explosion Proof Flashlight BW7500A, BW7500B, BW7500C - Image 3

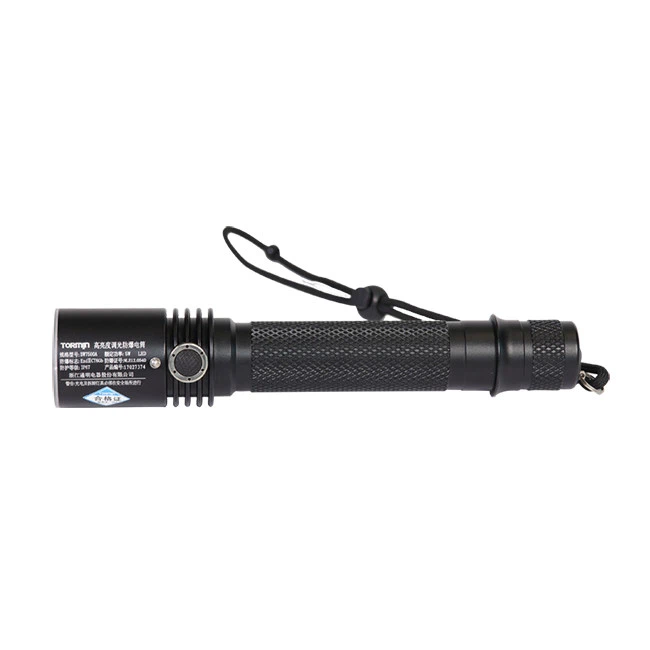

LED Explosion Proof Flashlight BW7500A, BW7500B, BW7500C - Image 4
Categories: ,

Model: BW7500A, BW7500B, BW7500C
IP Code: IP66
Ex Code: Ex d IIC T6 Gb
Standard: GB3836.1, GB3836.2
IEC60079-1:2007,MOD

It is ideal for the night work tasks in explosive area such as fire fighting, gas station, power station, chemical industrial, police, inspection and some other high stress environment.

Request for Quotation

Product Details

Application

  • It is ideal for the night work tasks in explosive area such as fire fighting, gas station, power station, chemical industrial, police, inspection and some other high stress environment.

Characteristics

  • Explosion proof torch adopts CREE LED light source with high efficiency. BW7500A’s effect beam range can reach 700meters. High intensity light and low intensity light are switchable.
  • Explosion proof rechargeable flashlight has battery status indication and low battery warning function, operator can check the battery status at any time. Towards the end of discharge, the beam flashes off repeatedly, warning recharging is required.
  • LED explosion proof lamp is sealed to IP67, water proof to 1 meter. Powered by lithium battery which provide a long service life and low discharge performance.
  • The flashlight surface adopts anti skidding treatment. Easy to carry.
  • The charging, discharging, constant current controlled by the chip with multiple protection.

Main Specification

Specification Unit BW7500A BW7500B BW7500C
Rated voltage V 3.7 3.7 3.7
Rated Power W 5 3 1
Rated Capacity mAh 4400 4400 4400
Average Service Life h 100000 100000 100000
Light Output(high) lm 430 285 150
Light Output(low) lm 180 150 100
Effective Range m 700 200 120
Continuous Runtime(High) h 4 6 12
Continuous Runtime(Low) h 10 10 20
Recharge Time h 8 8 8
Average Service Life h 100000 100000 100000
Service Life Of Battery Recycled ≈1000 ≈1000 ≈1000
Dimension mm φ40×210 φ40×210 φ40×210
Net weight g 300 300 300
