Application

It is suitable for use in hazardous materials such as oil exploration, smelting, chemical industry, military reserve, offshore oil platforms, cruise ships, etc., for lighting fixtures; for areas with high protection and humidity; for Zone 1 in explosive atmospheres, Zone 2; applicable to IIA, IIB, IIC explosive gas environment; Zone 1 with temperature group T3-T5, Zone 2 indoor and outdoor hazardous field gas or Zone 20, Zone 21, Zone 22 explosive or combustible dust Indoor and outdoor lighting of the venue.

Characteristics

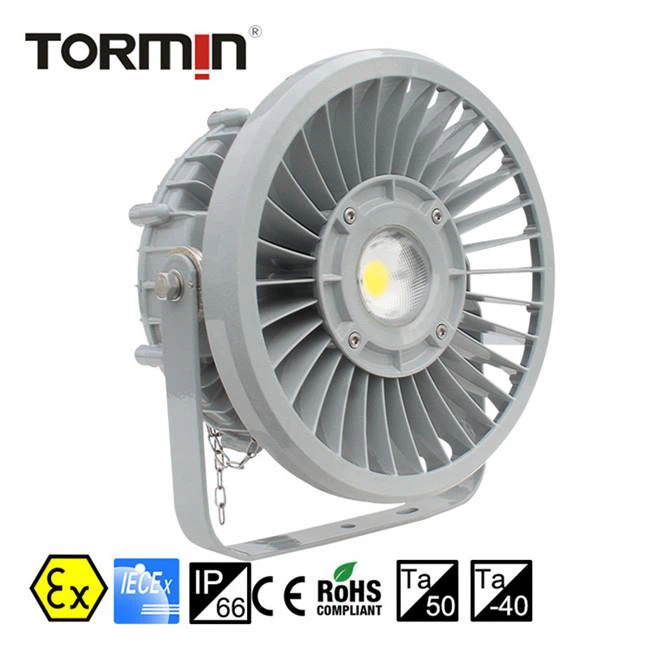

• The explosion proof luminaire consists of a light source cavity and an electrical cavity, and is designed in a closed design. The outer casing is made of special aluminum alloy die-casting, tempered glass lens and stainless steel exposed fasteners.
• The joint surface adopts waterproof structure, which has strong waterproof and dustproof effect; it is fastened by joint bolts, which can be quickly opened for easy maintenance; various threads G3/4〞, M20, M25, NPT3/4, NPT1/2; It can be assembLED and assembLED according to user’s requirements; the altitude of the installation site should not exceed 2000M; the ambient temperature is -40 degrees to +55 degrees; the relative humidity of the surrounding air is not more than 95% (+25 degrees), without severe vibration, shock and shaking.
• The explosion proof LED light is suitable for pipe hanging type, ceiling type, suction wall type, pole type, bracket type of various installation methods. The lamp has long life, high brightness and shock resistance, beautiful appearance and long-term application for maintenance-free. Energy-saving, environmentally friendly explosion-proof lamps.

Main Specification

• Explosion-proof mark: Ex d IIC T5/ T4/ T3 Gb
• Ex tb IIIC T95°C / T130°C / T195°C Db IP66
• The shell protection level: IP66
• Anti-corrosion grade: WF2
• Power efficiency: 0.91
• Rated working voltage: 90~305VAC 50/60Hz
• Introduction port: G3/4〞, M20, M25, NPT3/4, NPT1/2
• Cable specifications: 10-14mm
• Inlet thread: G20
• Working environment: Temperature: -40 ~ 55 degree C, humidity, 10% ~ 90%
• Working life: greater than or equal to 50000 H
• Lamp efficiency: 83%
• Color rendering index: greater than or equal to 70
