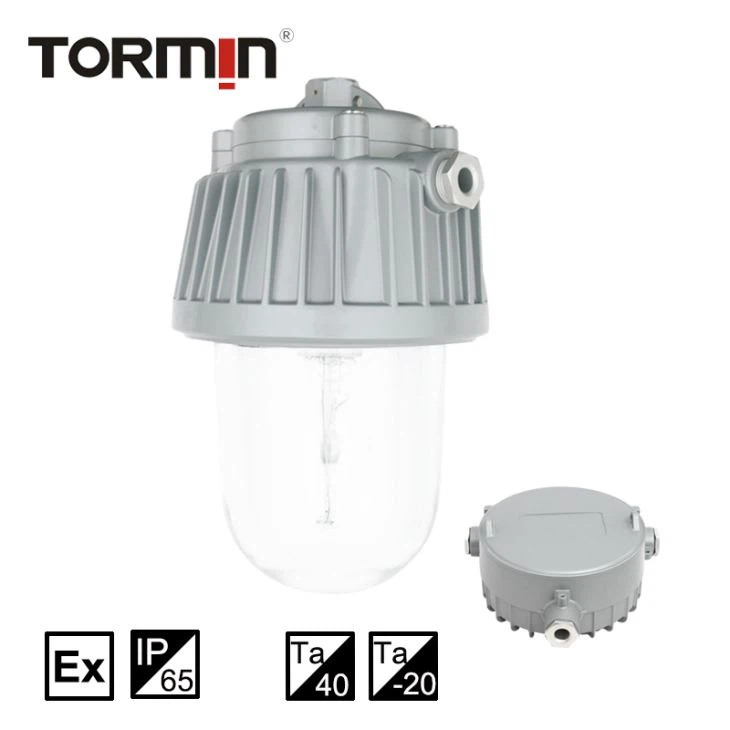

High Pressure Mercury Lamp BC9300 Series

Model: BC9300 Series
IP Code: IP65
Ex Code: Ex d IIC T4 Gb
Ambient temp.: – 20℃ to +40℃
Standard: GB3836.1, GB3836.2
IEC60079-1:2007,MOD

Explosion proof luminaire is ideal to be used in the environment of flammable gas and steam, such as Drilling Platform, Petrochemical Plant, Chemical Plant, Pharmaceutical Factory, etc.

Product Details


Application

  • Explosion proof luminaire is ideal to be used in the environment of flammable gas and steam, such as Drilling Platform, Petrochemical Plant, Chemical Plant, Pharmaceutical Factory, etc.
  • Zone 1, zone 2.

Characteristics

  • Equipped with international famous brand light source and electrical appliance, more stable performance and gives approximately 20% more light over the other manufacturers’.
  • It uses dual-cavity explosion-proof design, making it safe to be used in explosive and flammable places.
  • Anti-explosion lamp is made of aluminum alloy, high strength. The spray coating treatment ensure the lamp waterproof, anti-corrosion.
  • The protective guard is available.

Main Specification

Item Technical Parameters
Input voltage range 220VAC
Input frequency 50Hz
Light source MH Lamp/ Mercury Lamp
Service life 10000h
Cable entry G3/4″
Leading-in cable diameter φ9mm~14φmm
Dimension Lampφ200* 315mm
Ballast 230* 220* 105mm
Net weight Lamp 5.2Kg
Ballast 3.8Kg


Ordering Reference

Ordering
reference

Wattage

Light output

Space
height
ratio

Mounting
height

BC9300-J70

70W

4725lm

1.75

2~6m

BC9300-J100

100W

6750lm

BC9300-J150

150W

10500lm

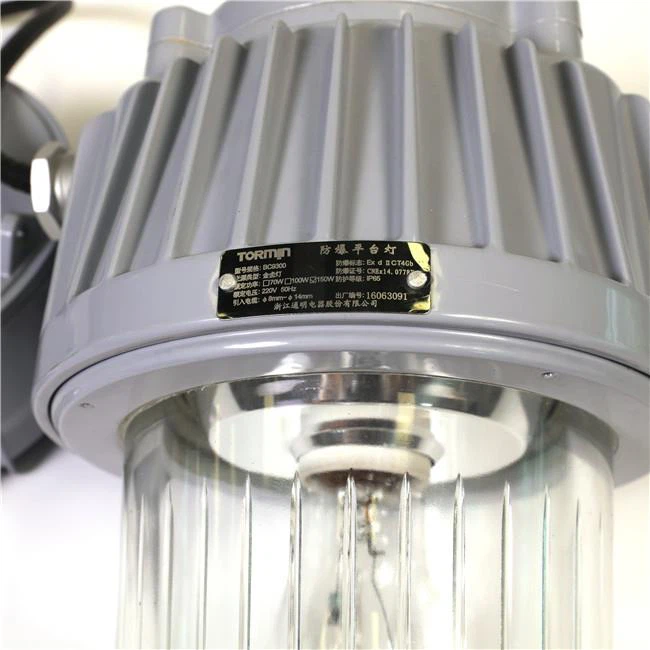

Production Details
