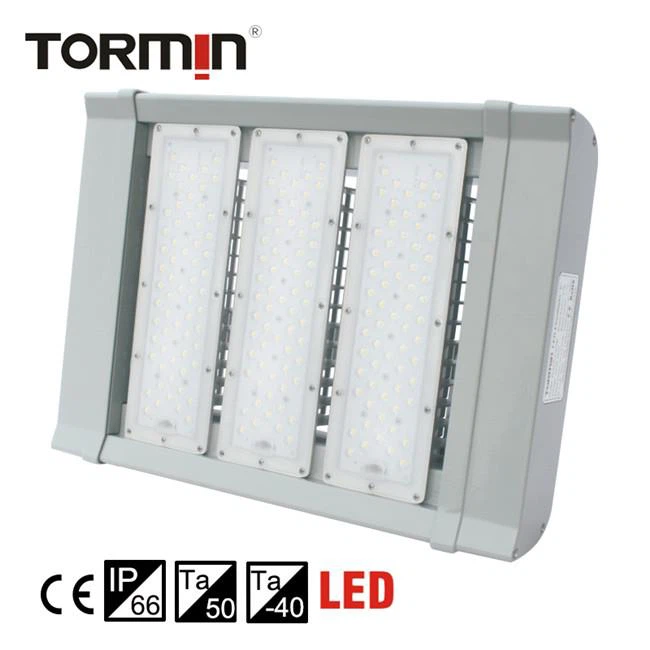

High Power LED Floodlight ZY8102 Series

High Power LED Floodlight Up To 300W It is an ideal lighting solution for power plants, substations, factories, docks, metallurgical plants and other indoor and outdoor lighting.

Model: ZY8102 Series
IP Code: IP66
Ambient temp.: -40℃ to +50℃

Product Details


Application

  • LED flood lighting fixture is an ideal lighting solution for power plants, substations, factories, docks, metallurgical plants and other indoor and outdoor lighting.

Characteristics

  • International brand LED chip, high transparent PC transparent lampshade, high hardness, strong impact resistance
  • IP66 rainproof level protection, professional waterproof outdoor lighting, sealing potting, waterproof pad, waterproof joint

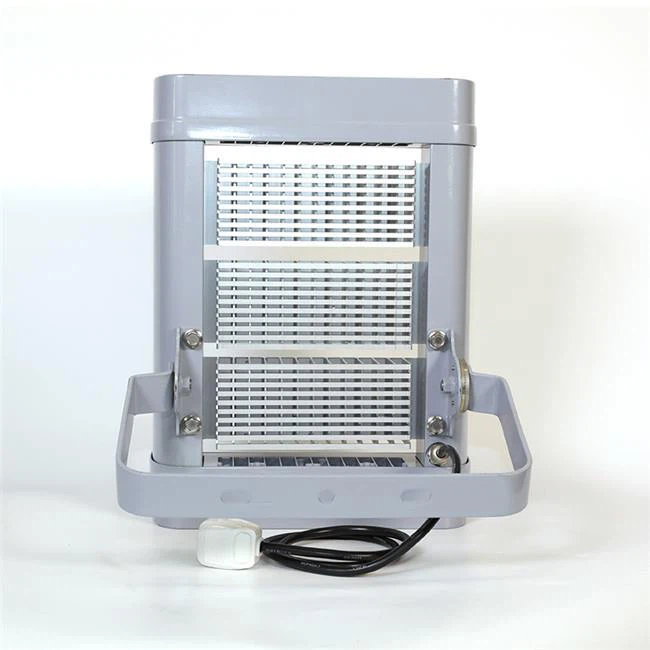

  • The thickened fins dissipate heat, which is more effective in transferring heat to the heat sink, effectively extending the service life.

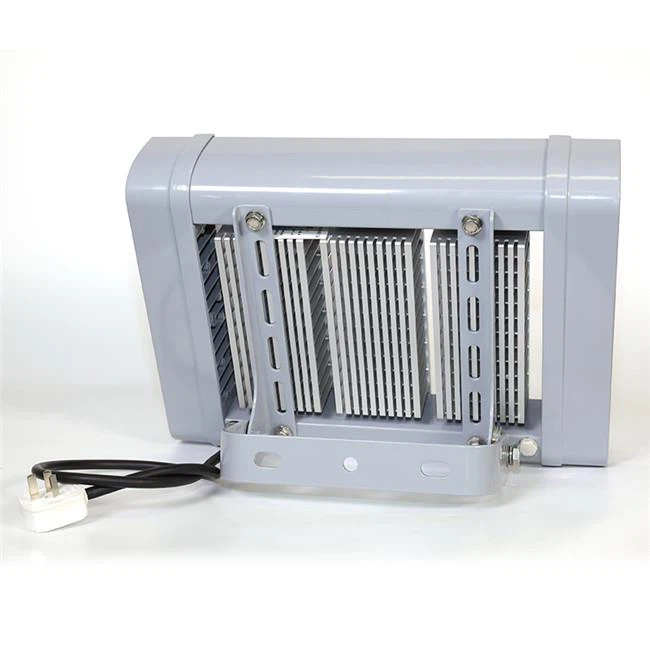

  • Thickened mounting bracket, stable and reliable, no displacement, adjustable 180 angle, more convenient
  • Aluminum housing, durable and anti-oxidation, ground lightning protection, anti-corrosion

Main Specification

Item Technical Parameters
Input Voltage 100~277VAC
Frequency 50Hz/ 60Hz
Life Time 100000h
CRI Ra 75
CCT 4250K±250K
Leading-in Cable Diameter φ6mm~φ8mm
Dimension 80W/100W 322(L)* 363* 150mm
120W/150W 417(L)* 363* 150mm
180W/200W 512(L)* 363* 150mm
300W 702(L)* 363* 150mm
Net Weight 80W/100W 5.2Kg
120W/150W 6.2Kg
180W/200W 7.2Kg
300W 9.2Kg
