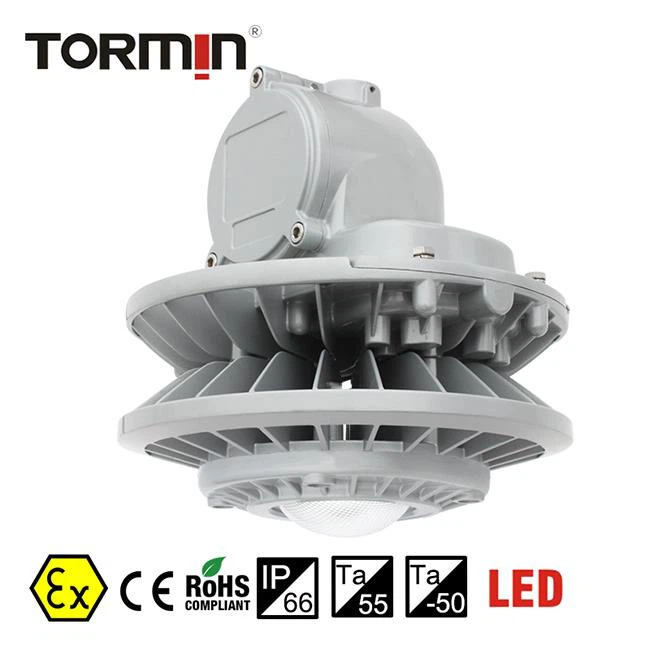

Model: BC9306P Series
IP Code: IP66
Ex Code: Ex db e IIC T4/T5/T6 Gb
Ex tb IIIC T130℃/ T95℃/T80℃ Db
Ambient temp.: – 50℃ to +40℃/55℃
Standard: GB3836.1, GB3836.2
IEC60079-1:2014, MOD
ATEX: EPT16 ATEX 2484 X
IECEX: IECEx EUT 17.0011X
Suitable for Low installation height in Moist corrosive environment, such as offshore drilling platform, Oil Terminal, etc. Areas for high demand of high temperature performance.
Product Details
Application
- Ideal to be used in the oilfield, chemical industry, offshore drilling platform, steel industry, petroleum, etc.
- Gas explosive environment: Group IIA, IIB, IIC.
- Zone 1, zone 2; zone 21, zone 22.
Characteristics
- Low power consumption. More than 60% energy saving compared to conventional HID lamps.
- Environmental friendly, lead and mercury free.
- Long operation lifetime, above 50,000 hours.
- Low maintenance costs for LED industrial light.
- Universal input 90-264VAC, 50/60Hz.
- Superior color rendition compared to the conventional industrial luminaire.
- Selectable color temperature
- Famous brand Citizen high power LED light source with unique COB design ensures high light purity, high heat conduction and slow brightness derating, easy-replacement.

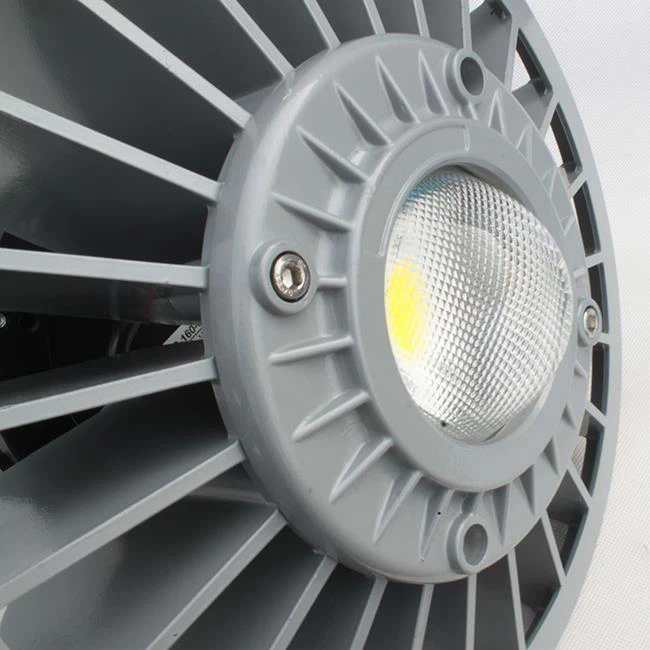

- Unique heat sink design ensures superior heat management.
Technical Specification
| Item | Technical Parameters |
| Input voltage range | 90~264VAC; |
| 18~43VAC; 18~55VDC (LOW) | |
| Input frequency | 50Hz/ 60Hz |
| Light source | LED |
| Wattage | 30~80W |
| Lighting efficiency | >110lm/W |
| Service life | 50000h |
| CRI | Ra 70 (80 Optional) |
| Color Temperature | 5000K(3000K/4000K Optional) |
| Cable entry | M20,M25, G3/4″,NPT1/2″,NPT3/4″ |
| Leading-in cable diameter | φ10mm~φ14mm |
| Dimension | φ230×270mm |
| Net weight (kg) | 4.2 Kg |
