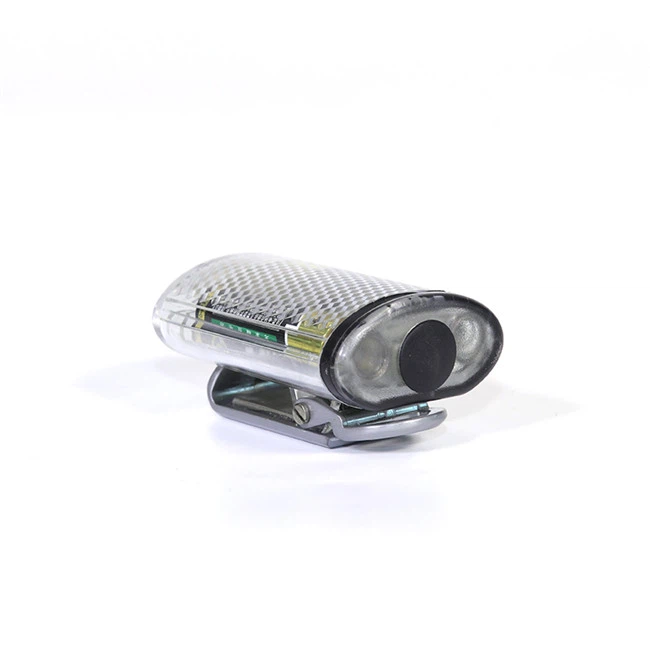

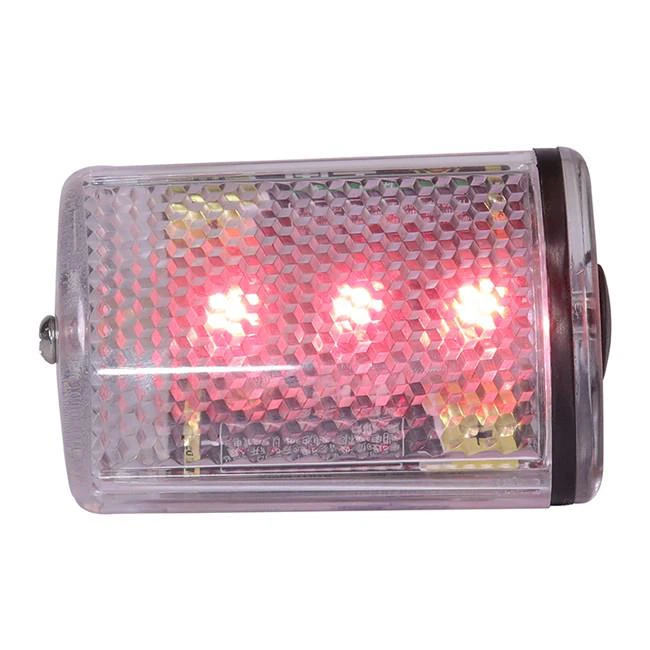

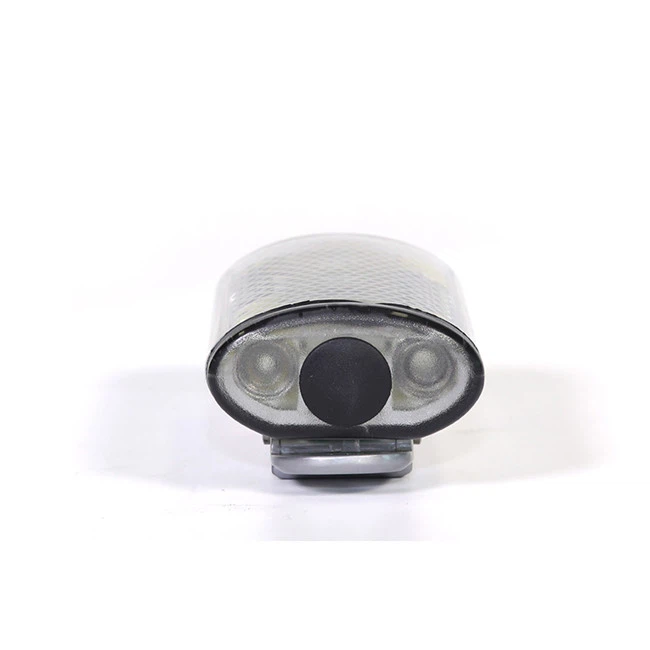

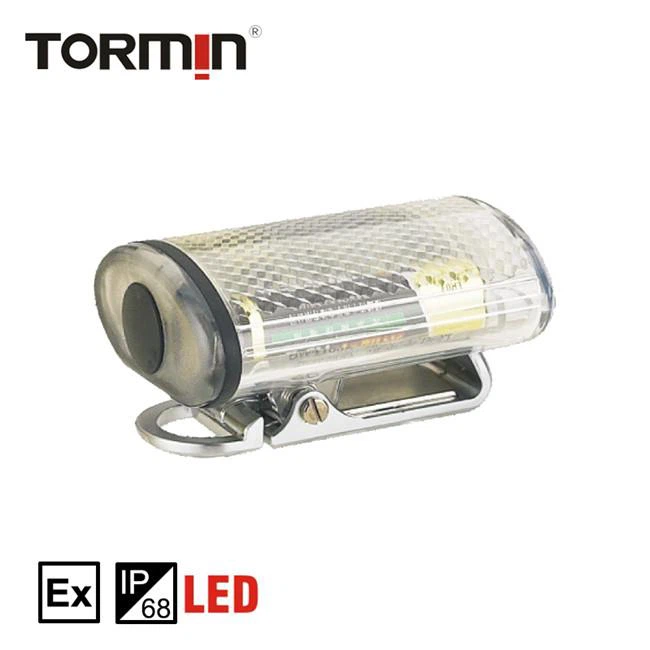

Explosion Proof Tracker Light BW4100

Model: BW4100
IP Code: IP68
Ex Code: Ex ia IIC T6 Gb
Standard: GB3836.1, GB3836.2
IEC60079-1:2007,MOD

It is ideal as a personal indicator to identify the position of workers, it also serve as signal communication tools in all kinds of hazardous area, such as construction, fire fighting, rescue, etc.

Product Details


Application

  • Ex LED portable light is ideal as a personal indicator to identify the position of workers, it also serve as signal communication tools in all kinds of hazardous area, such as construction, fire fighting, rescue, etc.

Characteristics

  • Explosion proof lamp can be folded and lifted, suitable for different heights of people towed mobile lamps
  • The projection angle of the lamp head can be rotated within 360 degrees of horizontal and 135 degrees of the pitch; it can also be removed by any angle of the lamp holder.
  • The lamp holder is equipped with a lifting rod that can be adjusted freely within the height range of 1.2-1.7 meters. It can be adjusted freely within a height range of 2-3 meters with a tripod.
  • Portable flameproof lamp has working light and glare function, and the light distribution has spotlight and floodlight options, which are suitable for different working conditions.
  • American CREE light source, Japanese Panasonic battery, high luminous efficiency, and long life
  • Lamp charging and discharging with intelligent control function, with overcharge, over discharge, short circuit protection, power prompts, etc.
  • The protection level of the lamp is IP66, and the explosion-proof protection level is Gb. It can be widely used in indoor and outdoor areas of various dangerous gases.

Main Specification

Specification Unit Values
Rated voltage V 1.5* 2
Current μA <3
Flashing Frequency Hz 2.7
Max Impulse Current mA 80
Dimension mm 70* 47* 39
Net weight Kg 0.1
