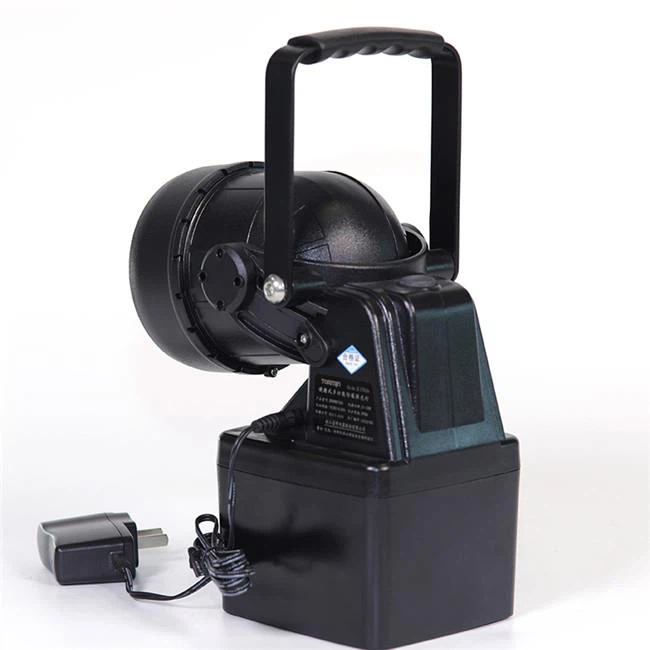

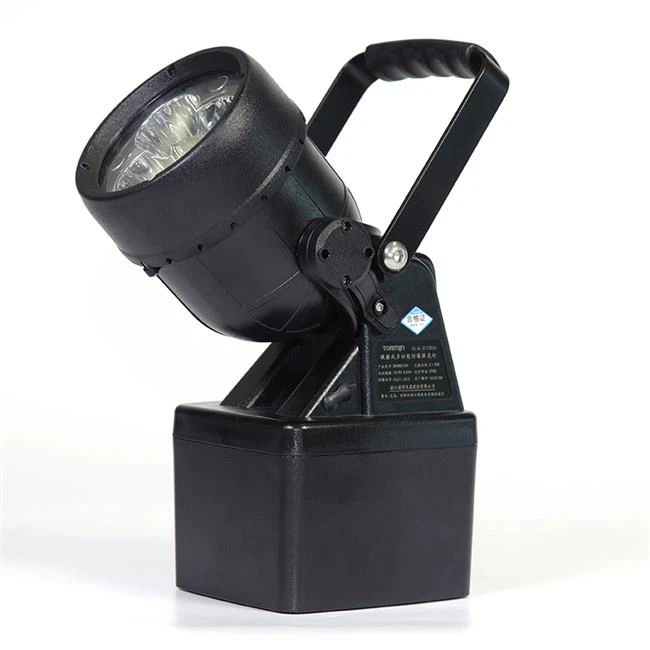

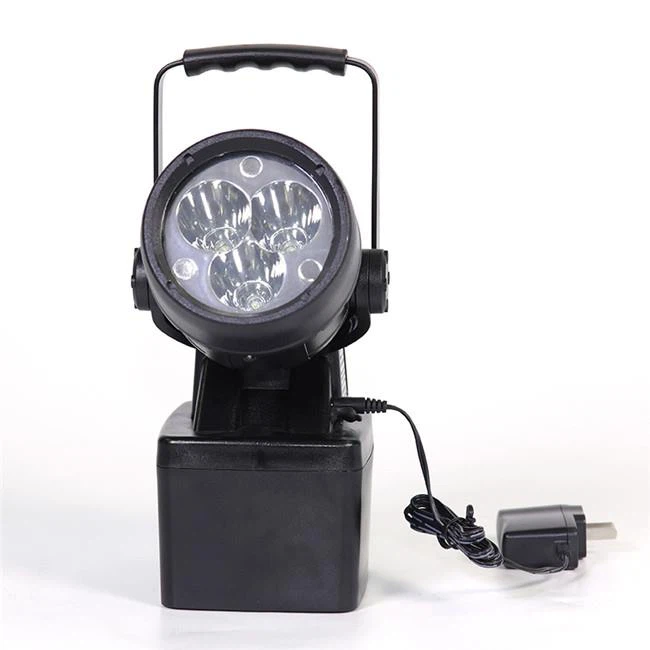

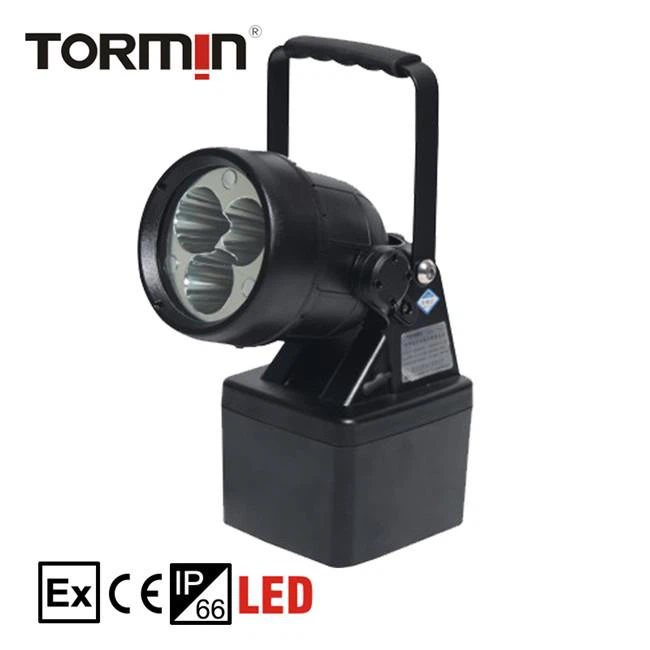

Explosion Proof Portable Lamp BW6610A

Model: BW6610A
IP Code: IP65
Ex Code: Ex ib IIC T4 Gb
Standard: GB3836.1, GB3836.2
IEC60079-1:2007,MOD

This product is ideal for use in patrol, inspection, repairing and other night work tasks in explosive and flammable atmosphere.

Product Details


Application

  • Applicable to petrochemical, gas, shipbuilding, public security, fire, military and other industries in a variety of flammable and explosive places.

Characteristics

  • Safety explosion-proof: Explosion-proof type explosion-proof class ExdIICT6, can work safely in various flammable and explosive places.
  • High efficiency and energy saving: 3X3W high power positive white LED light sources are used in series, which has high light efficiency, low energy consumption and long life. The reflector is made of high-tech surface treatment with high reflective efficiency and an illumination distance of up to 1000 meters.
  • Reliable and practical: the special lithium-ion battery pack has no memory, no pollution, large capacity, long life, safe and stable performance, low self-discharge rate, and can work continuously for 7~13 hours on a single charge.
  • Convenient and flexible: the outer surface is anodized, the shape is light and beautiful, and there are two kinds of carrying modes: hand-held and shoulder-shoulder, and the light touch switch makes the operation simple and convenient.
  • Waterproof and durable: The high-hardness alloy shell side is subjected to strong impact and impact, and the sealing performance is good.
  • Professional intelligence: The charger is controlled by a dedicated charging management chip, high reliability, fast charging, overcharge protection, short circuit protection, and status indication

Main Specification

Specification Unit Values
Rated Voltage V 11.1
Rated Power W 3* 3W
Rated Capacity mAh 5200
Light Output(high/ low) lm 810/ 465
Effective Range m 600
Continuous Runtime High h 7
Low 13
Recharge Time h 6
Effective Beam Distance m 100000
Service Life Of Battery Recycled ≈1000
Dimension mm 151* 131* 272
Net weight Kg 1.5
