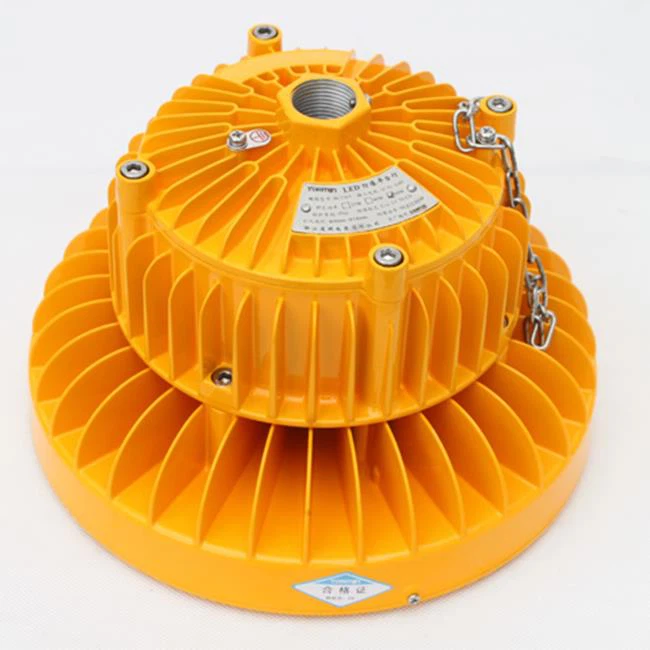

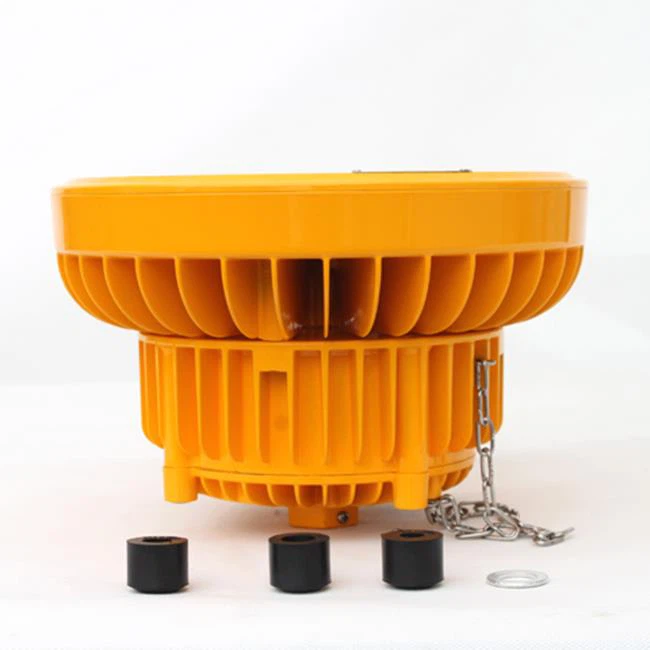

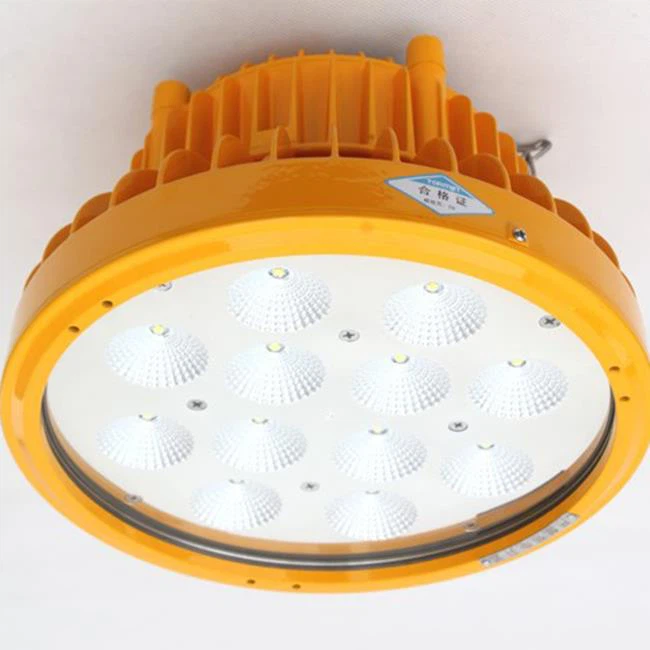

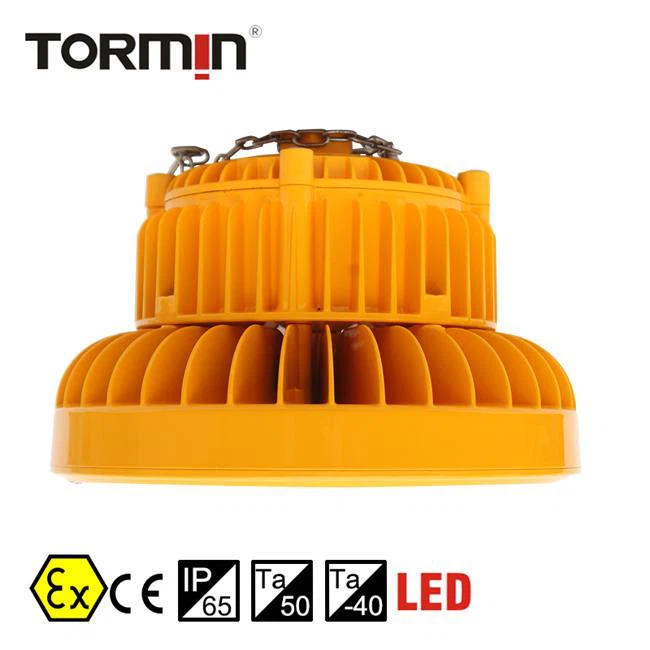

Model: BC9303 Series
IP Code: IP66
Ex Code: Ex d IIB T6 Gb
Ex tb IIIC T80℃ Db
Ambient temp.: – 40℃ to +50℃
Standard: GB3836.1, GB3836.2
IEC60079-1:2007,MOD
ATEX: INERIS 13ATEX0034X
LED industrial light is using first-class LED chip as light source and famous power driver. High luminous, energy saving. Excellent design for heat dispatch effect can select many colors, easily removable, wide application.
Product Details
Application
- Ideal to be used in the environment of flammable gas and steam dust environment, such as Petrochemical Plant, Chemical Plant, Pharmaceutical Factory, Cable channel, etc.
- Class 1, zone1& zone2
Characteristics
- LED industrial light is using first-class LED chip as light source and famous power driver. High luminous, energy saving.
- Excellent design for heat dispatch effect can select many colors, easily removable, wide application.
- Long lifespan 100000hours, 10 times longer than traditional light source.
- Environmental protection, no lead, halogen or other harmful substances.
- Good color rendering index, more real physical color.
- Excellent thermal dissipation.
- Easy installation in hazardous area as flameproof lighting.
- Anti-corrosion, anti-wear, dynamic coating, dustproof and waterproof, make fireproof lamp an ideal choice for various high-stress environments.
- According to customer requirements, 18~43VAC or 18~55VDC, 25W and 40W can be selected.
Technical Specification
| Item | Technical Parameters |
| Input voltage range | 100~240VAC |
| 24VAC/ DC; 36VAC/ DC(low) | |
| Input frequency | 50Hz/ 60Hz |
| Light source | LED |
| Service life | 100000h |
| CRI | Ra 75 |
| CCT | 5000K ±250K |
| Screw Thread | M20×1.5,M25×1.5, G3/4″,NPT1/2″,NPT3/4″ |
| Leading-in cable diameter | φ9mm~φ14mm |
| Dimension | φ240×180mm |
| Net weight | 4Kg |
Ordering Reference
|
Ordering reference |
Input Voltage |
Wattage |
Light output |
Mounting height |
Equivalent to |
|
High Pressure Mercury Lamp |
|||||
|
BC9303-L25H |
100~277VAC |
25W |
2400lm |
3~6m |
50~70W |
|
BC9303-L40H |
40W |
4300lm |
100W |
||
|
BC9303-L60H |
60W |
5800lm |
4~8m |
150W |
|
|
BC9303-L25L |
24VAC/DC |
25W |
2400lm |
3~6m |
50~70W |
|
BC9303-L40L |
40W |
4300lm |
100W |
