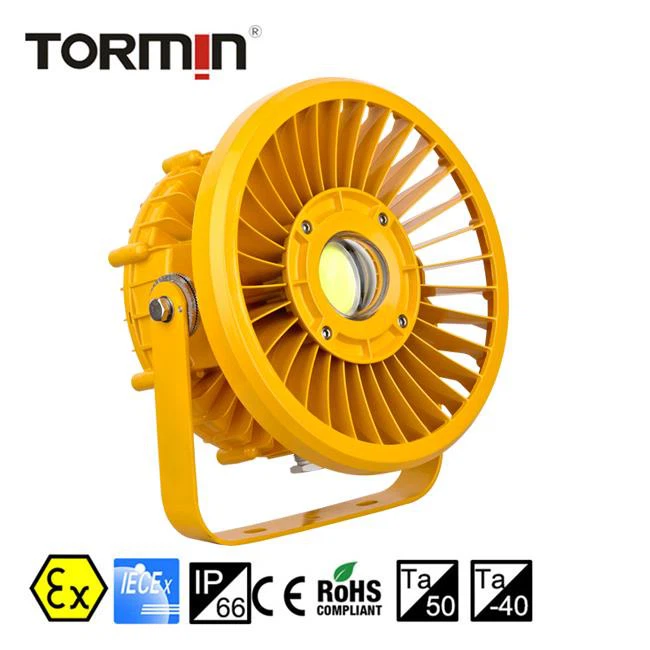

Model: BC9700 Series
Ex Code: Ex d IIC T5/ T4/ T3 Gb
Ex tb IIIC T95℃/ T130℃/ T195℃ Db IP66
Ambient temp.: -40℃ to +40℃/ 55℃
ATEX Cert No.: EPT16 ATEX 2483 X
IECEX Cert No.: IECEx INE 15.0020X
Explosion Proof Light With ATEX IECEX Certificate. We supply explosion proof light with ATEX IECEX certificate. The lighting solution, professional advice, technical support and local distributors service will be provided depends on your requirement. Every explosion proof lights are tested for their performance, IP level, lighting effect by final quality control teams before delivery.
Product Details
Application
- Zone 1, zone 2; zone 21, zone 22.
- Suitable for Low installation height in Moist corrosive environment, such as offshore drilling platform, Oil Terminal, etc.
Characteristics
- Better design: up to 200W round explosion-proof lamp, a variety of illumination angles, 90 ~ 305V, daylight (5000K). High-brightness Citizen LED chip. IP66 protection grade, waterproof, dustproof, explosion-proof.
- Wide use: The IECEX explosion-proof lamp is specially designed for the joint station, oil depot, dangerous dock, high-risk workshop, dangerous goods warehouse, coal shed traffic, paint workshop, transfer station, etc. Can replace old bulbs with this LED flameproof light very well. Shipped from China warehouse.
- Energy saving: Explosion proof LED have universal application. Compared with high-pressure sodium lamps, incandescent lamps, metal halide lamps, HID, CFL bulbs and traditional street lamps, up to 80% of power consumption can be saved instead of saving electricity.
- Material: Three independent cavity design, full transparent design, special aluminum alloy material, heat dissipation performance is better than similar products, heat dissipation performance is about 15%.
Main Specification
| Brand | TORMIN |
| Part Number | BC9700 series |
| Item Weight | 6.3kgs |
| Product Dimensions | 300 x 202 x 332mm |
| Area Lighting Classification | IP66 |
| Style | Modern |
| Color | Gray/ Yellow |
| Shape | Round |
| Voltage | 90~305 volts |
| Fixture Features | 1.100% brand new .,
2.Energy-saving and environmentally friendly., 3.Housing case: adopts the high quality stainless steel, double ensure heat dissipation., 4.Widely used in joint station, oil depot, dangerous dock, high-risk workshop, dangerous goods warehouse, coal shed traffic, paint workshop, transfer station, etc. |
| Shade Material | Special Aluminum Alloy |
| Light Direction | Up/Down Light |
| Power Source | Ac |
| Batteries Included? | No |
| Batteries Required? | No |
| Type of Bulb | LED |
| Luminous Efficiency | >100 lm/W |
| Wattage | 60~200 watts |
| Color Temperature | 5000 Kelvin(3000/4000 optional) |
Ordering Reference
| Ordering reference | Wattage | Light output | Space height ratio | Mounting height | Equivalent to |
| High Pressure Mercury Lamp | |||||
| BC9700-L60 | 60W | >7100lm | 0.7~1.75 | 8~12m | 150W |
| BC9700-L80 | 80W | >8600lm | 0.7~1.75 | 8~12m | 175W |
| BC9700-L100 | 100W | >11300lm | 0.7~1.75 | 8~12m | 250W |
| BC9700-L120 | 120W | >13000lm | 0.7~1.75 | 8~12m | >250W |
| BC9700-L150W | 150W | >16500lm | 0.7~1.75 | 10~12m | 400W |
| BC9700-L200 | 200W | >23000lm | 07~1.75 | 10~12m | >400W |
