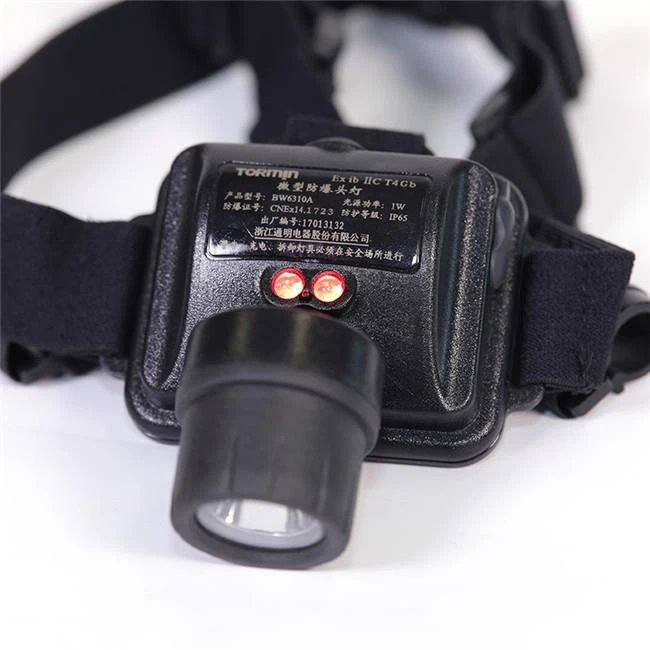

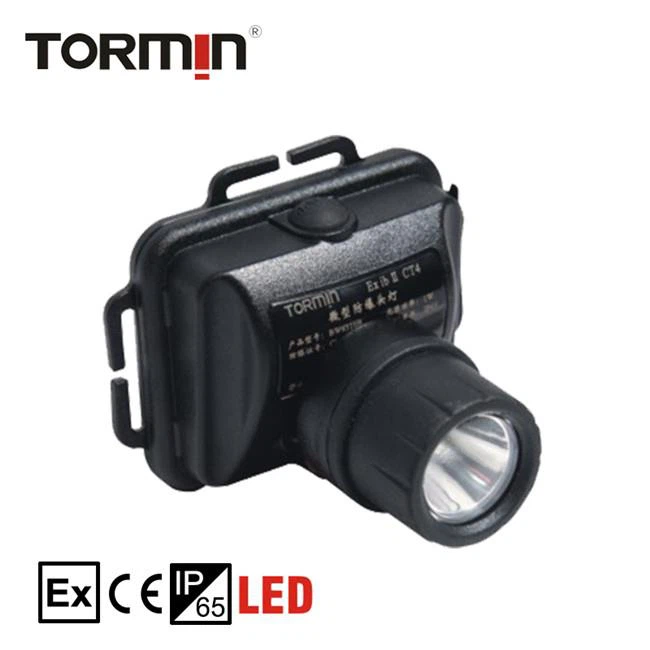

Explosion Proof LED Headlamp BW6310A, BW6310B
Categories: EX Flashlight, EX Proof Lighting
Model: BW6310A, BW6310B
IP Code: IP65
Ex Code: Ex ib IIC T4 Gb
Standard: GB3836.1, GB3836.2
IEC60079-1:2007,MOD
Specialize for coal mine, fire fighting, chemical industry, railway station as headlamp. It includes bandage for putting on head or cap.
Product Details
Application
- Explosion proof head light is used as safety helmet head light explosive gas, vapor and mist places. It is the ideal lighting solution for workers in power station, oil field, chemical industry, fire fighting, railway station, military, etc.
Characteristics

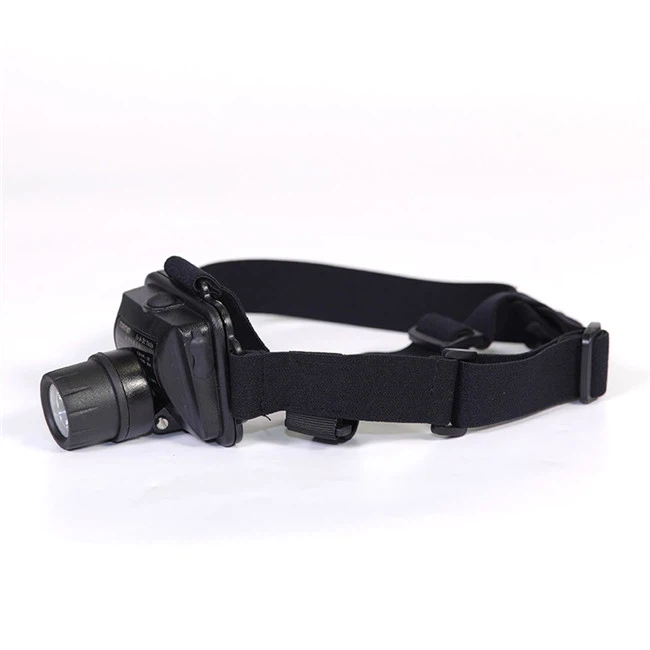

- Explosion proof cap lamp not only can be fixed onto the helmet with the screws provided, but also can be fixed onto the helmet or head by the elastic headband. The head of the light is adjustable within 90°, operator can rotate the head of light to the desired direction.
- The red strobe light design to suit numerous applications where indication is critical during emergency. Press the button and switch to the red strobe light mode, mining headlamp can let others identify the position of the worker.
- Explosion proof LED headlamp has battery status indication and low battery warning function, operator can check the battery status at any time. Towards the end of discharge, the beam flashes off repeatedly, warning recharging is required.
- Adopts CREE LED light source with high light efficacy and 100,000 hours service life. Use of the latest safety increased lithium-ion battery technology improves reliability and environment friendly.
- The charger is controlled by intelligent chip, with various protection.
Main Specification
| Specification | Unit | BW6310A | BW6310B | |
| Rated voltage | V | 3.7 | 3.7 | |
| Rated Capacity | Ah | 1.4 | 1.4 | |
| Light Output | High | lm | 148 | 83 |
| Low | 83 | 55 | ||
| lux in 1 m | High | Lux | ≥1750 | ≥980 |
| Low | ≥950 | ≥550 | ||
| Average Service Life | h | 100000 | 100000 | |
| Continuous Runtime | High | h | 4 | 8 |
| Low | 8 | 16 | ||
| Effective Range | m | 130 | 100 | |
| Recharge Time | h | 4 | 4 | |
| Service Life Of Battery | Recycled | ≈1000 | ≈1000 | |
| Dimension | mm | 50* 65* 60 | 50* 65* 60 | |
| Net weight | g | 85 | 85 | |
| Item | Technical Parameters |
| Input voltage range | 90~305VAC |
| Input frequency | 50Hz / 60Hz |
| Light source | LED |
| Service life | 50,000h |
| CRI | Ra 70 (80 Optional) |
| CCT | 5000K (3000K/4000K Optional) |
| Cable entry | M20,M25, G3/4″,NPT1/2″,NPT3/4″ |
| Dimension | 300×202×332mm |
| Net weight (kg) | 6.3Kg |
