Application

• Suitable as supplementary lighting for equipment in hazardous chemicals, accent lighting for equipment; main light source illumination for passages, pump rooms, tanks
• Hazardous Gas area: Zone 1 and Zone 2
• Dangerous dust area: Zone 21 and 22

Characteristics

• Special anti-glare wide light distribution design, especially suitable for wide-angle illumination and channel illumination.
• The atex lamp has high anti-corrosion and anti-vibration ability and is suitable for various indoor and outdoor harsh industrial working environments.
• Gas and dust double explosion-proof certification, explosive gas and dust environment can be applied.

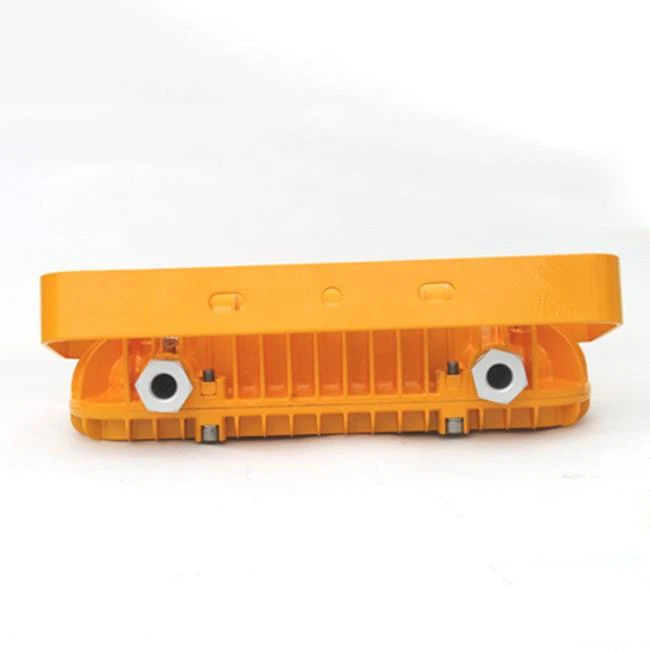

• The flame proof light has two access ports, which can be used in parallel as wiring, saving the cost of installing the junction box in the middle.
• Selecting the US CREE light source, the overall lighting efficiency is as high as 100lmW, and the metal halide lamp energy saving is more than 60%.
• High-end brand (Meanwell, Inventronics) aluminum shell seal outdoor special power supply, wide input range, constant current and constant voltage output, high power factor, high efficiency, dual-stage PFC, anti-lightning surge, ensure long-term stable and efficient lamps Output.
• The whole lamp protection grade is IP66, which can be applied to various indoor and outdoor dust or rain and fog and a violent wave environment.
• Explosion proof luminaire can be equipped with built-in emergency module, 15W/120min or 25W/70min as LED emergency lights. Lighting emergency or pure emergency optional

Main Specification

Ordering Reference

Production Details
