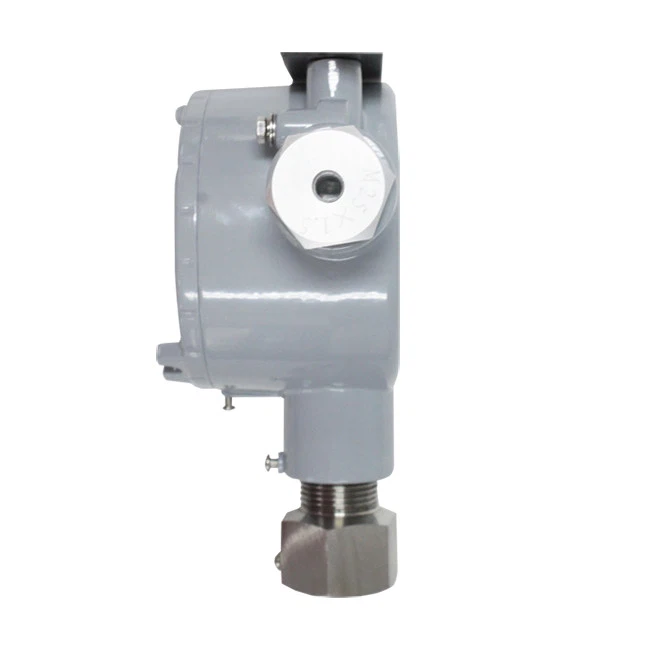

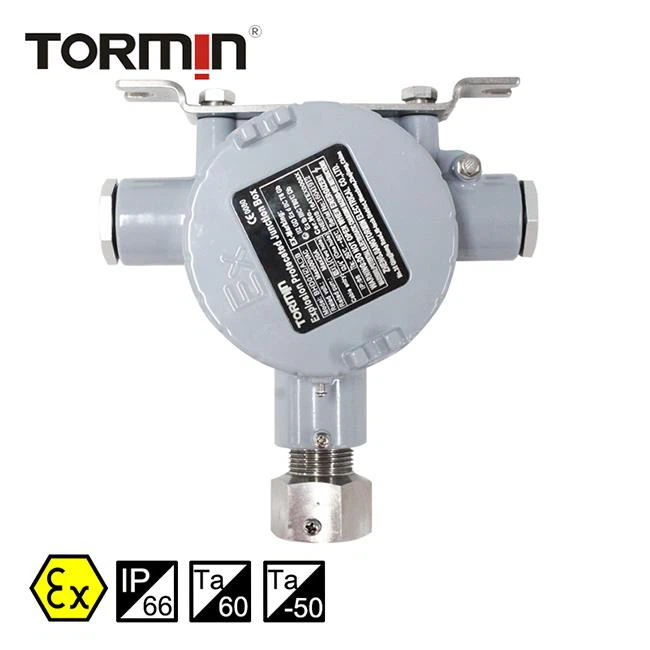

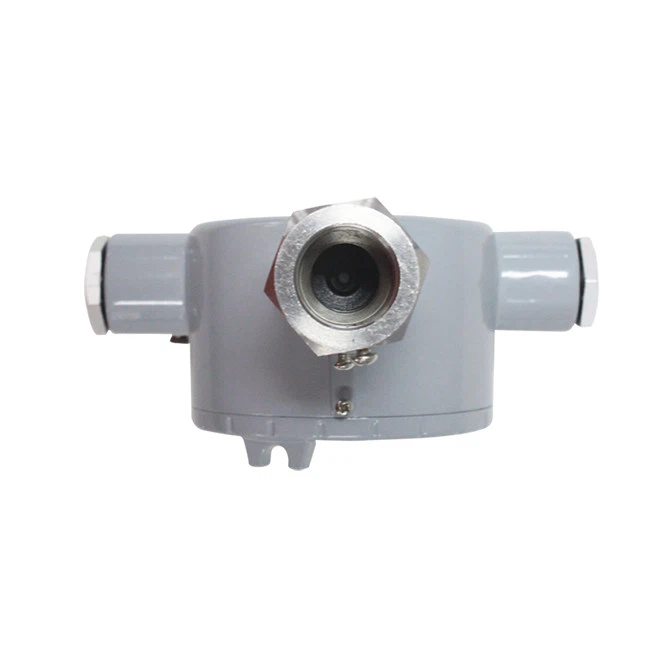

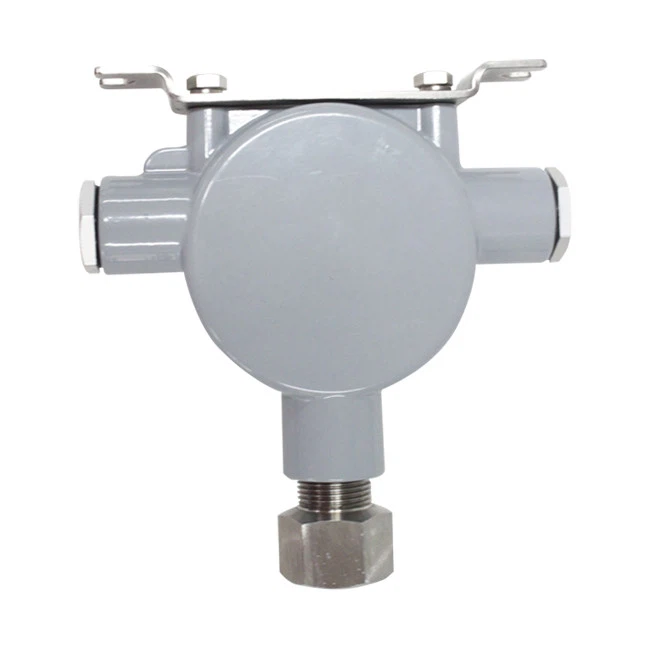

Explosion Proof Junction Box For Wiring Safety Used as junction box and mounting element for lighting equipment installed in explosion and hazardous areas, like petrochemical plants, chemical plants, pharmaceutical factory, polishing plant, etc.
Model: BHD01A, BHD01B
IP Code: IP66
Ex Code: Ex d IIC T6 Gb
Ex tD A21 T80℃
Ambient temp.: – 50℃ to +60℃
Standard: GB3836.1, GB3836.2
IEC60079-1:2007,MOD
ATEX Cert NO.: INERIS 16ATEX0008X
IECEX Cert NO.: IECEx INE 16.0017X
Product Details
Application
- Used as junction box and mounting element for lighting equipment installed in explosion and hazardous areas, like petrochemical plants, chemical plants, pharmaceutical factory, polishing plant, etc.
Characteristics
- Explosion-proof junction box has the characteristics of small volume, light weight, convenient installation, etc.
- The shell of flameproof fitting adopts anti-corrosive processing, standard for the 304 stainless steel material, using high-tech surface anti-corrosion treatment technology, applicable to all kinds of bad industrial environment.
Technical Specification
| Item | Technical specification |
| Input voltage range | ≤500V |
| Input frequency | 50Hz/ 60Hz |
| Rated Current | <20A |
| Outside Diameter | φ9~φ14mm |
| Cable Diameter | 0.75~ 2.5mm2 |
| Net weight | 1 Kg |
Ordering Reference
| Ordering
reference |
Cable entry | Dimension | Cable entry quantity | Drop cable quantity |
| BHD01A | M25* 1.5(Two hole); G3/4”(One hole) | 185*185*75mm
|
2 | 1 |
| BHD01B | M25* 1.5(Two hole); G3/4”(One hole) | 185*185*75mm
|
2 | 1 |
