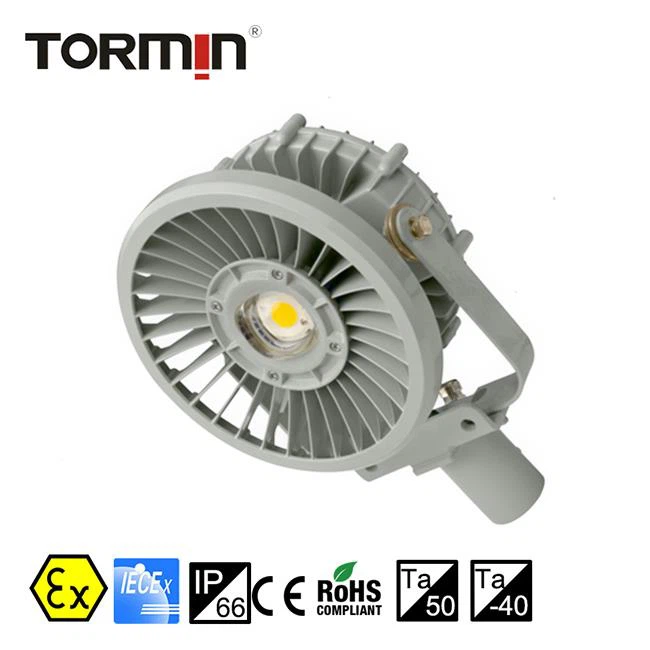

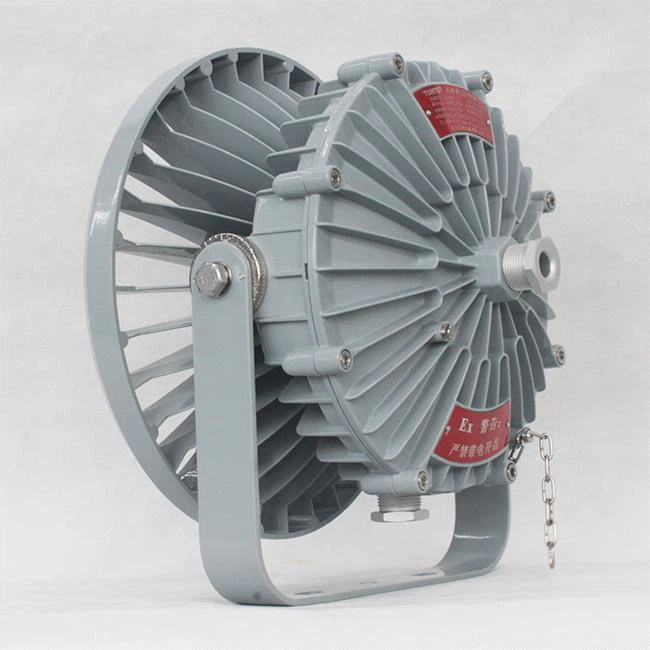

Explosion Proof Flood Light BC9700 Series

Model: BC9700 Series
Ex Code: Ex d IIC T5/ T4/ T3 Gb
Ex tb IIIC T95℃/ T130℃/ T195℃ Db IP66
Ambient temp.: -40℃ to +40℃/ 55℃
ATEX Cert No.: EPT16 ATEX 2483 X
IECEX Cert No.: IECEx INE 15.0020X

We supply explosion proof flood light for street specialized for road lighting in hazardous areas, gas stations, docks, etc. Could be used in flammable gas area Zone 1 and Zone 2; Dangerous dust area Zone 21 and Zone 22

Product Details


Characteristics

  • Preferably, the LED chip is imported. Excellent luminous flux maintenance and high luminous efficiency. Greatly improve thermal conductivity;
  • Adopt constant current drive, with short circuit and over voltage protection function;
  • Explosion-proof lamps have good electromagnetic compatibility, and will not cause any interference to other electrical appliances and transmission networks. The power supply itself has good anti-electromagnetic interference capability;
  • The drive power of the explosion-proof floodlights is designed with a waterproof package to ensure that the components are not corroded;
  • The whole lamp adopts IIC explosion-proof structure and IP66 protective lamps, which have excellent explosion-proof protection performance and adopt tempered glass to withstand high energy impact;
  • All exposed fasteners and accessories are made of stainless steel;
  • The connection method with top cover is convenient for user wiring and maintenance, and various installation methods are available for users to choose.

Main Specification

Item Technical Parameters
Input voltage range 90~305VAC
Input frequency 50Hz / 60Hz
Light source LED
Service life 50,000h
CRI Ra 70 (80 Optional)
CCT 5000K (3000K/4000K Optional)
Cable entry M20,M25, G3/4″,NPT1/2″,NPT3/4″
Dimension 300×202×332mm
Net weight (kg) 6.3Kg
