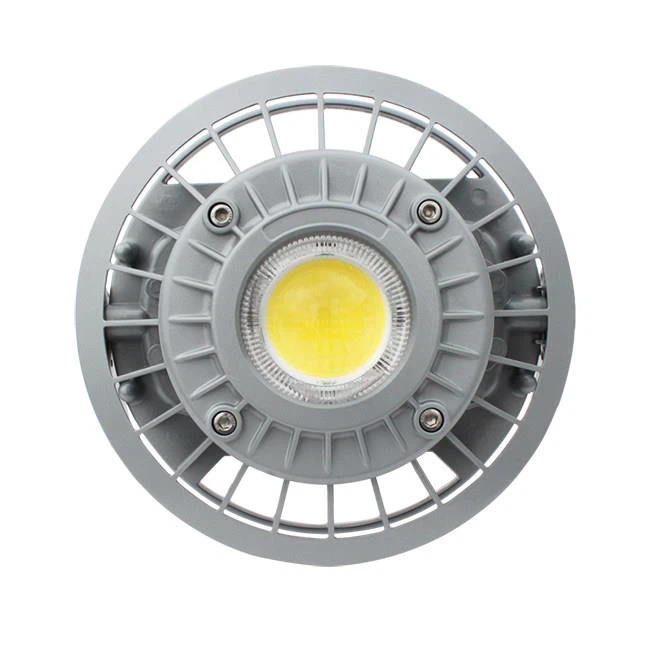

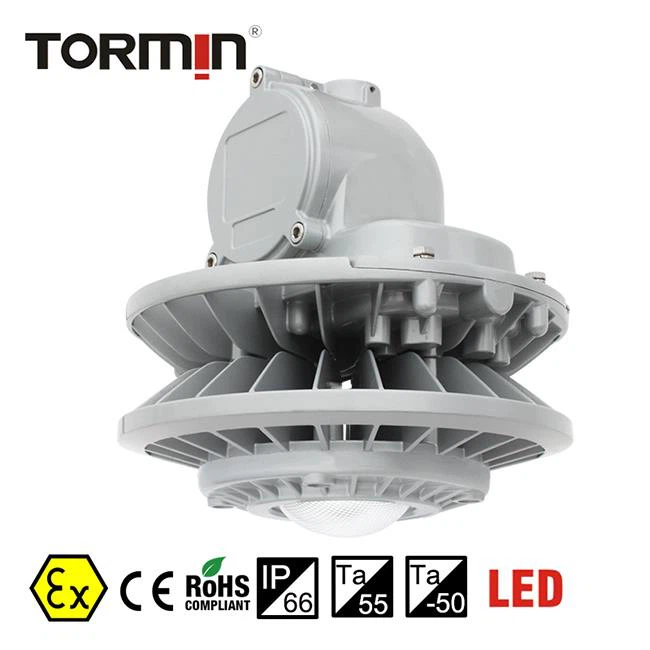

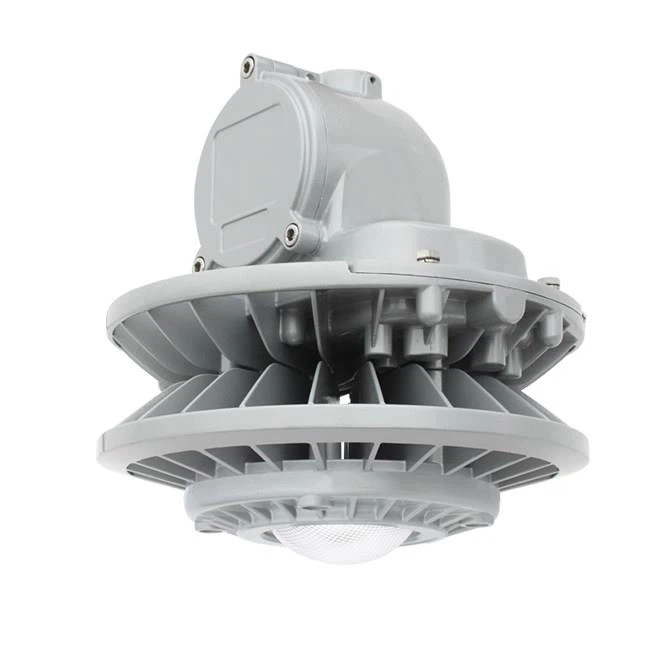

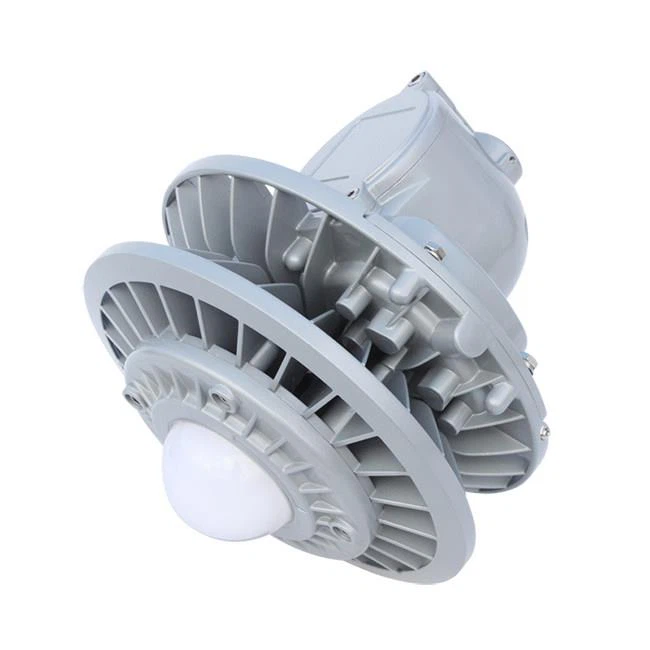

Model: BC9306P Series
IP Code: IP66
Ex Code: Ex db e IIC T4/T5/T6 Gb
Ex tb IIIC T130℃/ T95℃/T80℃ Db
Ambient temp.: – 50℃ to +40℃/55℃
Standard: GB3836.1, GB3836.2
IEC60079-1:2014, MOD
ATEX: EPT16 ATEX 2484 X
IECEX: IECEx EUT 17.0011X
EX proof luminaire with ATEX certified BC9306P series are high quality and hot-sales LED tube light for petrochemical plants, oil platforms, painting workshop, etc. High lighting effect, special aluminum alloy housing and tempered glass. Well selling to EU/ Middle east, Southeast Asia market.
Product Details
Application
- Ideal to be used in the oilfield, chemical industry, offshore drilling platform, steel industry, petroleum, etc.
- Gas explosive environment: Group IIA, IIB, IIC.
- Zone 1, zone 2; zone 21, zone 22.
Characteristics
- Aluminum alloy lamp body, electric box and neck, and electro-static coating surface.
- The dismountable lens provides more options for using place.
- Famous Brand LED chip and power driver provide good performance and quality.
- Explosion proof LED lights have the features of the high-temperature resistance, flame retardant, good insulation performance, anti-electric fire, and high luminous efficiency.
- Droplight can be selected by customers. Installation: suspended, side entry on the wall.
- Optoelectronic integrated technology, no dark spot, no ghosting, energy-saving is 60% more than Metal Halide Lamp.
- The housing of explosion proof LED is die cast in aluminum alloy, with high voltage static plastic sprayed surface;
- Tempered glass lens, stainless exposed fastener.
- Fastened with eyelet bolt, it can be turned on quickly, instalLED and maintained conveniently.
Main Specification
| Item | Technical Parameters |
| Input voltage range | 90~264VAC; |
| 18~43VAC; 18~55VDC (LOW) | |
| Input frequency | 50Hz/ 60Hz |
| Light source | LED |
| Wattage | 30~80W |
| Lighting efficiency | >110lm/W |
| Service life | 50000h |
| CRI | Ra 70 (80 Optional) |
| Color Temperature | 5000K(3000K/4000K Optional) |
| Cable entry | M20,M25, G3/4″,NPT1/2″,NPT3/4″ |
| Leading-in cable diameter | φ10mm~φ14mm |
| Dimension | φ230×270mm |
| Net weight (kg) | 4.2 Kg |
