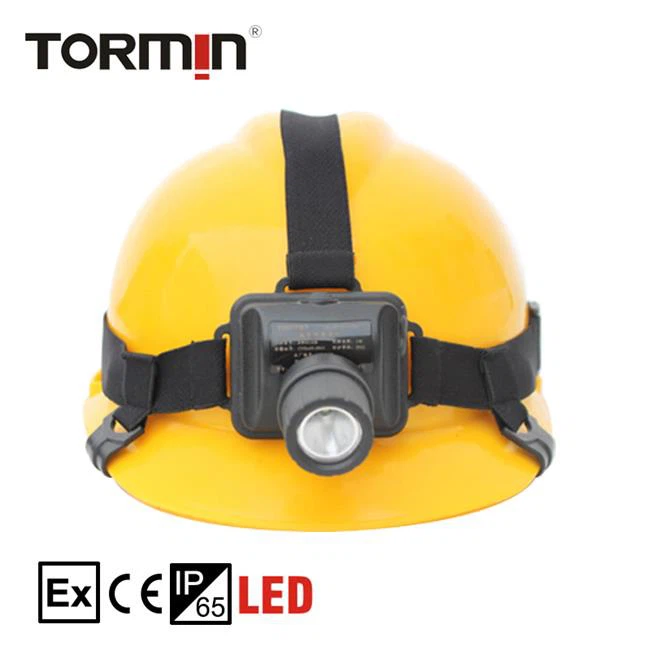

Ex Cap Lamp BW6310A, BW6310B

Ex Cap Lamp BW6310A, BW6310B
Ex Cap Lamp BW6310A, BW6310B - Image 2
Ex Cap Lamp BW6310A, BW6310B - Image 3
Ex Cap Lamp BW6310A, BW6310B - Image 4
Categories: ,

Model: BW6310A, BW6310B
IP Code: IP65
Ex Code: Ex ib IIC T4 Gb
Standard: GB3836.1, GB3836.2
IEC60079-1:2007,MOD

Explosion proof cap light is widely used in various flammable and explosive places as well as in the grid, power, oil, chemical, fire, railway, military and other industries as mobile lighting.

Request for Quotation

Product Details

Application

  • Explosion proof cap light is widely used in various flammable and explosive places as well as in the grid, power, oil, chemical, fire, railway, military and other industries as mobile lighting.

Characteristics

  • Light weight, easy to carry, and diversified
  • Azimuth warning lights are provided, and unexpected conditions can be used to indicate the position
  • Adjustable Ex lamp head angle, light touch switch, flexible and convenient to use
  • 1.5 m drop has no effect, and the low temperature environment can still work normally.
  • American CREE light source, high luminous efficiency and long life.

Main Specification

Specification Unit BW6310A BW6310B
Rated voltage V 3.7 3.7
Rated Capacity Ah 1.4 1.4
Light Output High lm 148 83
Low 83 55
lux in 1 m High Lux ≥1750 ≥980
Low ≥950 ≥550
Average Service Life h 100000 100000
Continuous Runtime High h 4 8
Low 8 16
Effective Range m 130 100
Recharge Time h 4 4
Service Life Of Battery Recycled ≈1000 ≈1000
Dimension mm 50* 65* 60 50* 65* 60
Net weight g 85 85
