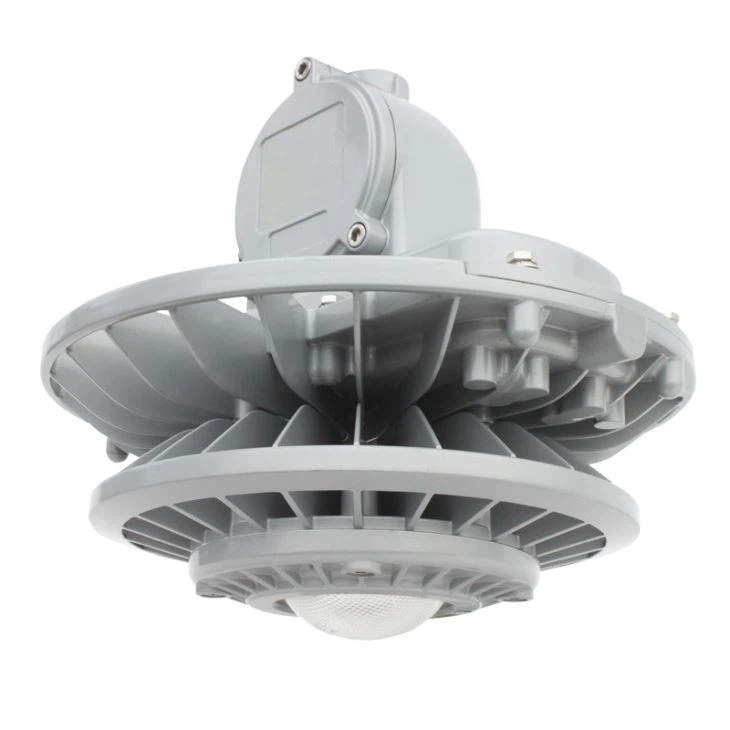

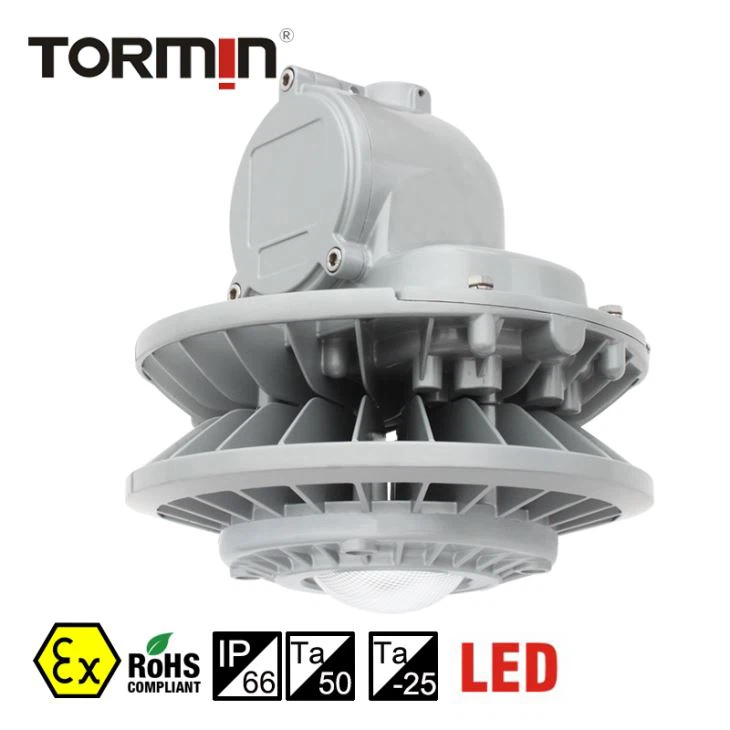

Model: BC9306AP, BC9306BP
IP Code: IP66
Ex Code: Ex d IIC T5/ T6 Gb
Ex tb IIIC T95℃/ T80℃ Db
Ambient temp.: – 25℃ to +50℃
Standard: GB3836.1, GB3836.2
IEC60079-1:2007,MOD
ATEX Cert No.: EPT16 ATEX 2484 X
IECEX Cert No.: IECEx EUT 17.0011X
Widely used in oil, oil refining, chemical, gas stations and other hazardous environments and offshore oil platforms, oil tankers and other places for general lighting and operational lighting
Product Details
Application
- Ideal to be used in the oilfield, chemical industry, steel industry, power, port, Petroleum etc.
- Gas explosive environment: Group IIA, IIB, IIC.
- Zone 1, zone 2; zone 21, zone 22.
Characteristics
- The shell of hazardous area emergency light is made of special aluminum alloy, which has good corrosion resistance and ensures reliable operation of the lamp in various environments.
- ATEX emergency light uses high borosilicate glass and thickened physical tempered glass. It has reliable performance and can withstand 4J impact.
- Special heat sink structure, all-round air self-circulation, hot and cold air convection, high temperature and low temperature resistance.
- Independent research and development design and manufacture of shell structure, light source and power supply and other accessories from internationally renowned brands.
- Independent wiring cavity design, parallel lighting, saving junction box cost and ensuring wiring safety.
- The difference between Type A and Type B is whether there is a general lighting function and multiple lighting modes are available.
- Reinforced anti-corrosion screws, made of 304 stainless steel, to enhance the overall solidity.
Main Specification
| Item | Technical Parameters |
| Type | BC9306AP/ BC9306BP |
| Input voltage | 100~240VAC |
| Input frequency | 50Hz/ 60Hz |
| Light source | LED |
| CRI(Ra) | 70(80 Optional) |
| Service life | 50,000h |
| CCT | 5000K(3000K/4000K Optional) |
| Time of charging | >6h |
| Rated Capacity | 2.6Ah/ 14.8V |
| Cable entry | G3/4″, NPT3/4″, M25, M20, NPT1/2″ |
| Leading-in cable diameter | φ10mm~φ14mm |
| Terminals | Multi-strand wire：≤2.5mm2 |
| Single-strand wire：≤4mm2 | |
| Dimension | φ230* 270mm |
| Net weight | 4.2 Kg |
