IP Code: IP66
Ex Code: Ex de op is IIC T5 Gb
Ex op is tb IIIC T95℃ Db
Emergency Wattage: 20W
Emergency duration: 90min
Ambient temp.: -25℃ to +50℃
BC5401-L2*20(emergency)
We supply ATEX emergency light with LED T8 Tube.
Product Details
Application
- LED explosion proof emergency light can be widely used in petrochemical plants, oil platforms, oil pump housing, transit stations and other flammable and explosive places as fixed lighting.
- Gas explosive environment: Group IIA, IIB, IIC.
- Zone1, Zone2; Zone21, Zone22
Characteristics
- Atex lighting is made using a special aluminum housing, anti-corrosion performance than 304 stainless steel, suitable for long-term highly corrosive environment of offshore platforms, chlor-alkali, hydrogen sulfide, etc.
- The anti-corrosion, abrasion proof, power coated cover which is dust proof, water proof, make the lamp an excellent option for all kinds of high environment.
- All 304 stainless steel bracket screw (customizable 316), can effectively guarantee the long-term strength and strong corrosion problems of lamps.

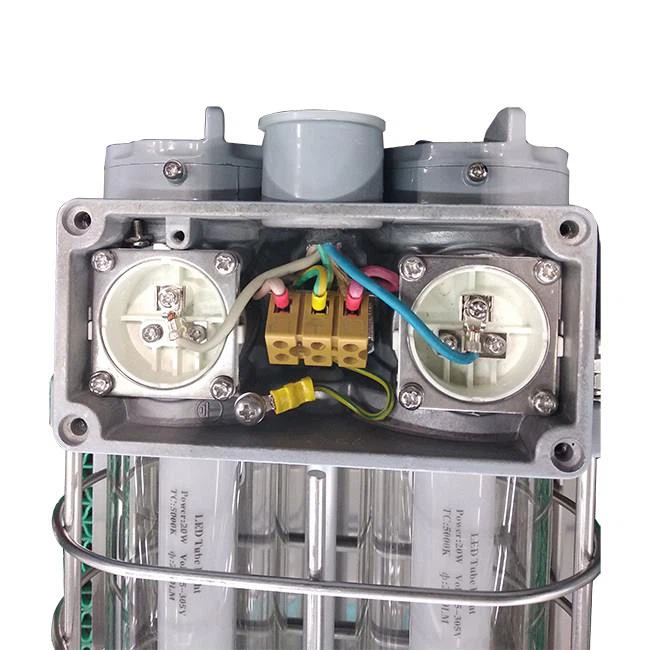

- Terminals are provided at both ends, can be directly wired in parallel, eliminating the junction box and installation costs.
- A variety of installation as optional: ceiling, oil derrick, the side walls, curved rods, boom, etc.
Main Specification
| Item | Technical Parameters | |
| Rated power | 2*20W(T8 led tube) | |
| Emergency power | 20W | |
| Input voltage range | 100~240VAC | |
| Input frequency | 50Hz/ 60Hz | |
| Light source | LED | |
| Light efficiency | 90lm/W | |
| CRI | Ra 80 | |
| Service life | 50000 h | |
| CCT | 5000K | |
| Emergency Duration | 90 min | |
| Time of charging | 6h | |
| Rated Capacity | 2.6Ah/14.8V | |
| Screw Thread | G3/4″, NPT3/4″, M25* 1.5 | |
| Leading-in cable diameter | φ10mm~φ14mm | |
| Dimension | Lamp | 1390* 180* 110mm |
| Emergency Box | 230* 220* 105mm | |
| Net weight | Lamp | 10.7Kg |
| Emergency Box | 2.8Kg | |
Production Details
