Model: BC9306S Series
IP Code: IP66
Ex Code: Ex d e IIC T4/T5/T6 Gb
Ex tb IIIC T130 ℃/T95℃/T80℃ Db
Ambient temp.: – 50℃ to +55℃
Standard: GB3836.1, GB3836.2
IEC60079-1:2014, MOD
ATEX: EPT16 ATEX 2484 X
IECEX: IECEx EUT 17.0011X

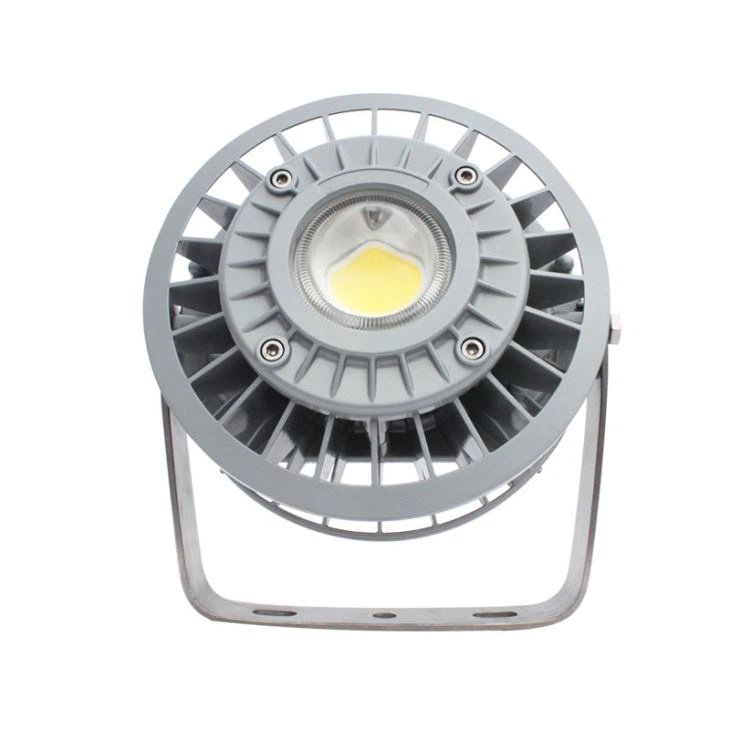

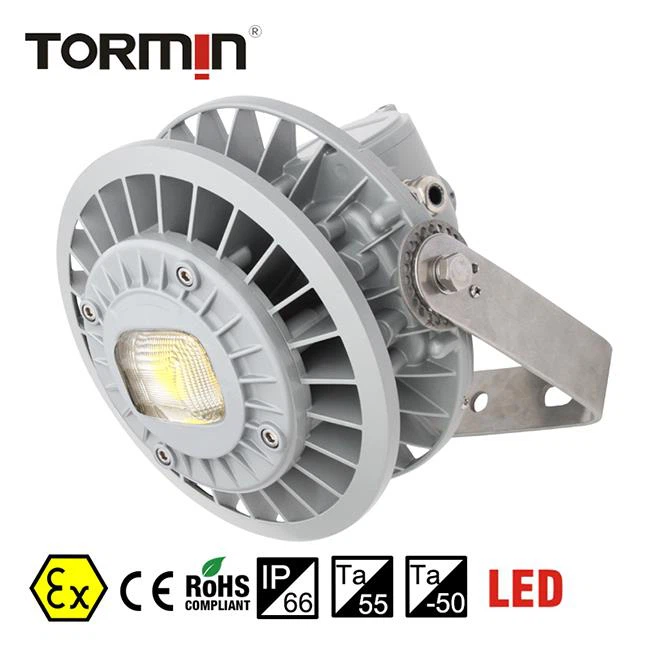

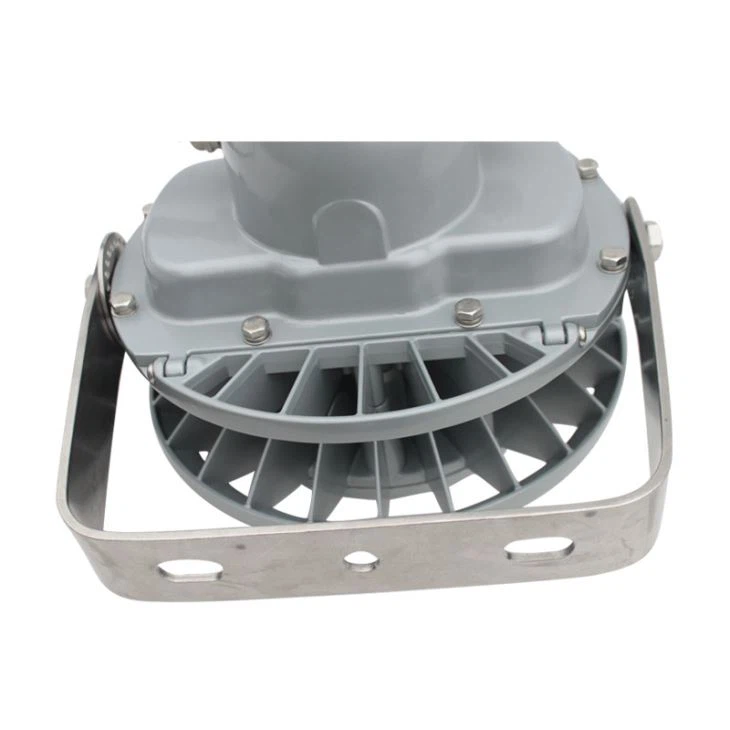

The BC9306 series ATEX LED light features field-proven long-life LED technology for global certification in all Zone 1 applications. Three independent chambers are explosion-proof and the separate wiring compartment provides the most flexible installation and the simplest installation and maintenance.
Product Details
Application
- Ideal to be used in the oilfield, chemical industry, offshore drilling platform, steel industry, petroleum, etc.
- Gas explosive environment: Group IIA, IIB, IIC.
- Zone 1, zone 2; zone 21, zone 22.
Characteristics
- Designed for ultra-large open hazardous areas that require high performance, high reliability, and white light illumination. The BC9306 series ATEX LED light features field-proven long-life LED technology for global certification in all Zone 1 applications. Three independent chambers are explosion-proof and the separate wiring compartment provides the most flexible installation and the simplest installation and maintenance. The all-around self-circulating heat dissipation design ensures a long service life.
Main Specification
| Item | Technical Parameters |
| Rated voltage | 100~240VAC; 24VAC /DC; 36VAC /DC (LOW) |
| Input frequency | 50Hz/ 60Hz |
| Light source | LED |
| Service life | 50000h |
| CRI | Ra 70(80 Optional) |
| Color Temperature | 5000K(3000K/4000K Optional) |
| Cable entry | M20×1.5,G3/4″,NPT1/2″ |
| Terminals | Multi-core wire：≤2.5mm2 |
| Single-core wire：≤4mm2 | |
| Dimension | 245* 260* 270mm |
| Net weight (kg) | 4.9 Kg |
