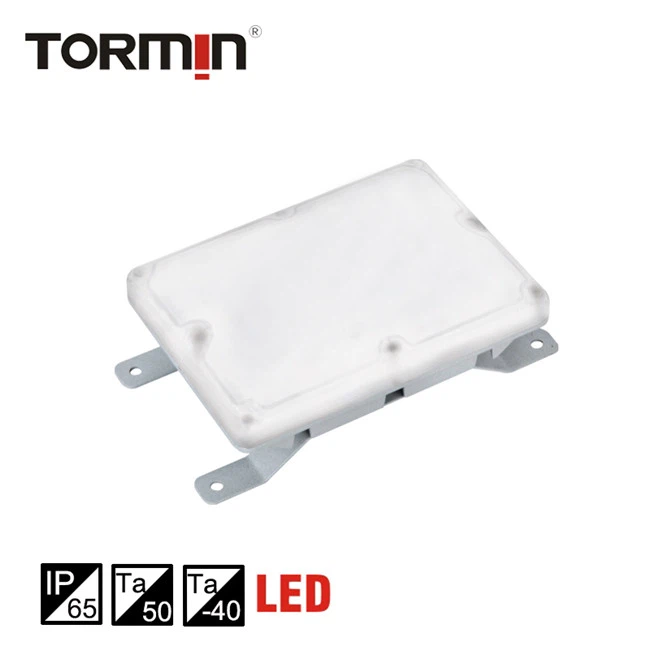

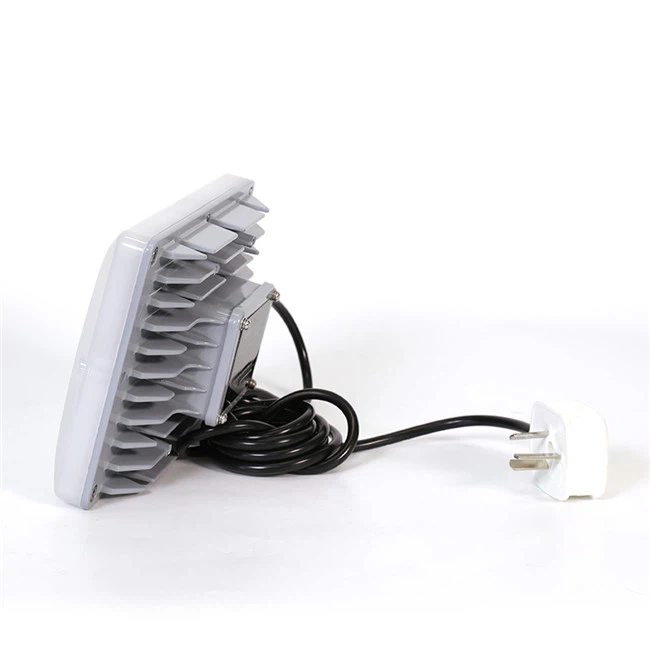

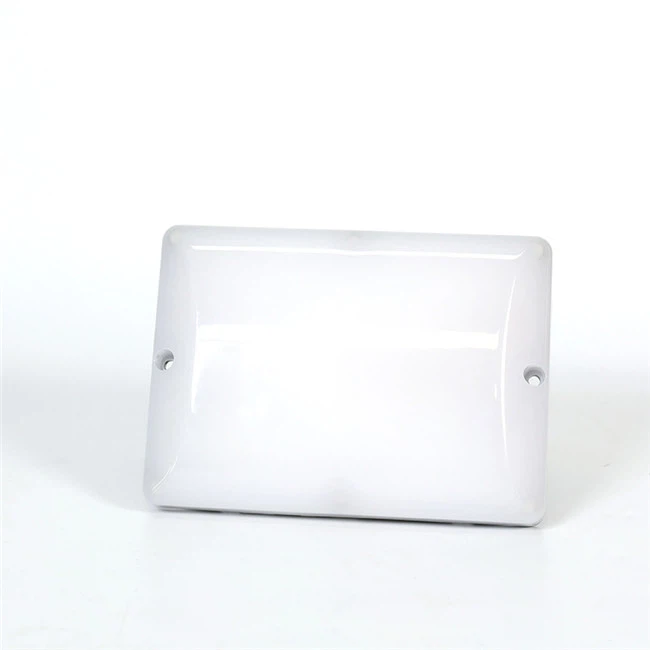

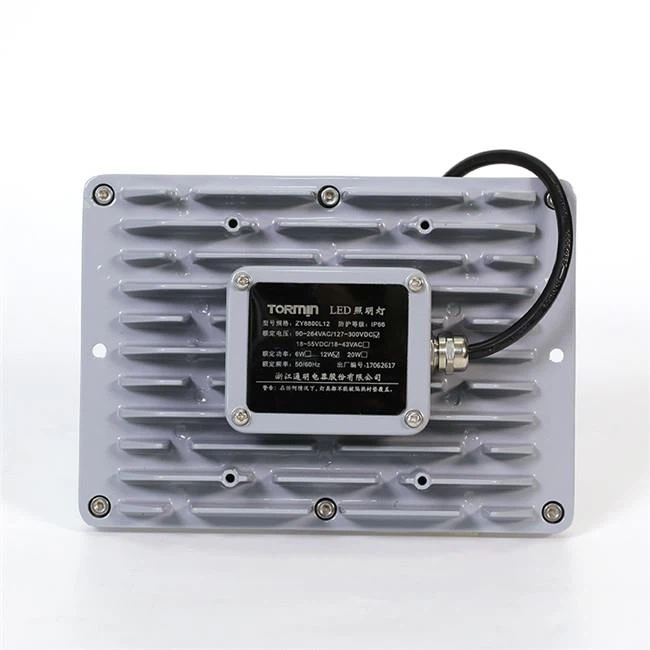

12W LED Lamp ZY8800 Series

12W LED Lamp With Free-Maintenance. It is suitable for walkways, tunnels, trenches and other indoor lighting.

Model: ZY8800 Series
IP Code: IP65
Ambient temp.: -40℃ to +50℃

Product Details


Application

  • Suitable for walkways, tunnels, trenches and other indoor lighting.

Characteristics

  • Free-maintenance LED lamp can save 60% or more on energy than the metal halide lamp.
  • It adopts domestic brand power supply with AC and DC wide voltage constant power, power factor above 0.98.
  • Low wattage lamp is using reflective cup design, non-glare, does not cause eye fatigue of workers, improve work efficiency.
  • Housing made of aluminum alloy processing, standard parts with 304 stainless steel, using high-tech anti-corrosion surface treatment technology, suitable for a variety of harsh industrial operating environment.
  • Transparent parts adopt imported optical grade PC, high transmittance, good impact resistance, let lights work in a variety of harsh environments.

Main Specification

Item Technical Parameters
Rated Voltage 100~240VAC;
24VAC/DC; 36VAC/DC
Frequency 50Hz/ 60Hz
Light Source LED
Life Time 100000h
CRI Ra 75
CCT 4250K±250K
Dimension 180* 130* 65mm
Net Weight 1Kg

 Ordering Reference

Ordering reference

Rated Voltage

Wattage

Light output

Space height ratio

Mounting height

Equivalent to

Fluorescent Lamp

ZY8800-L6

100~240VAC

6W

600lm

1.2

2~4m

12W

ZY8800-L12

12W

1200lm

22W

ZY8800-L20

20W

1700lm

45W

ZY8800-L6D

24VAC/DC; 36VAC/DC

6W

600lm

1.2

2~4m

12W

ZY8800-L12D

12W

1200lm

22W
